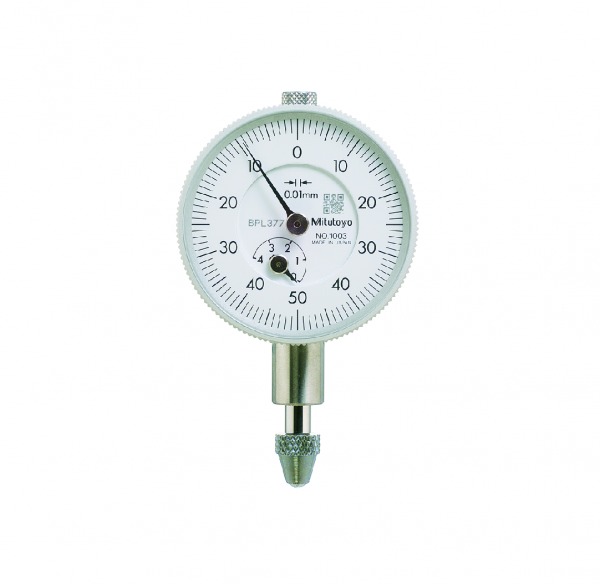

Mitutoyo Dial Indicator, Compact Flat Back Metric Small Diameter, Series: 1 Series, 4 mm, 0 to 50 to 0 Dial, Graduations: 0.01 mm, M2.5×0.45 Tip
Additional information
Weight
0.0480 kg
barcode
Additional Information
Scale: 0-50-0
Inch-Metric: Metric
Range: 4 mm
Graduation: 0.01 mm
MPE any 1/10 revolution: 6 µm
MPE any 1/2 revolution: 9 µm
C: 36 mm
D: 13 mm
E: 15 mm
G: 12.8 mm
Stem: 8 mm
Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm
Delivered: with certificate of inspection
Balanced dial: Yes
EN ISO 463: Errors of indication over a range of (see below)
MPE any 1 revolution: 10 µm
Range: 14 µm
Digital/Analog: Analog
H MPE (Hysteresis): 3.5 µm
R MPE (Repeatability): 3 µm
Mass: 48 g
