Mitutoyo DIAL INDICATOR 1160A

Description

The Mitutoyo 1160A Series 1 Back-Plunger Dial Indicator has the following specifications:

Measuring Range: 0-5mm
Graduations: .01mm
Accuracy: +/-.016mm
Range/Rev: 1mm

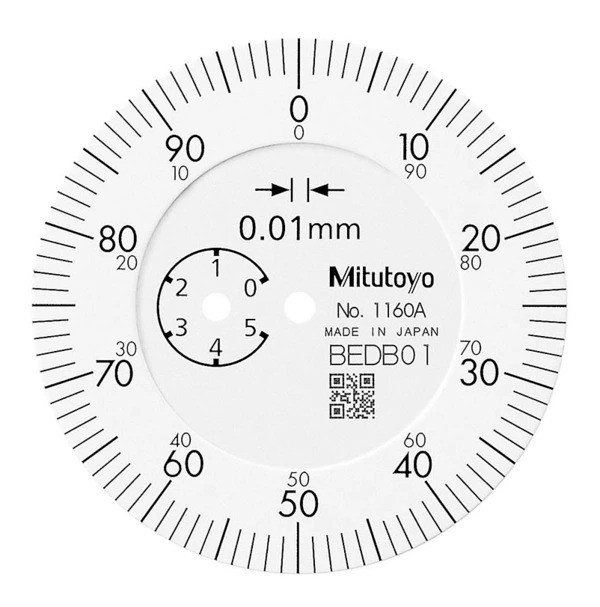

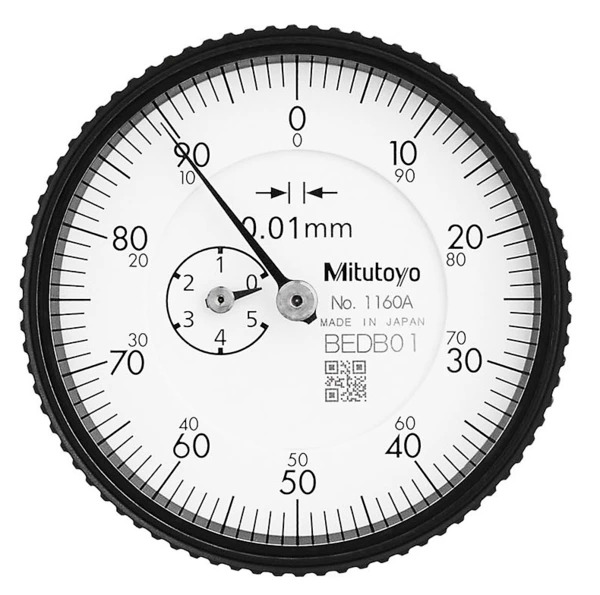

Dial Reading: 0-100
Measuring Force: 0.4 – 1.4N
ISO/JIS Type: 8mm Stem with M2.5 x 0.45 Thread

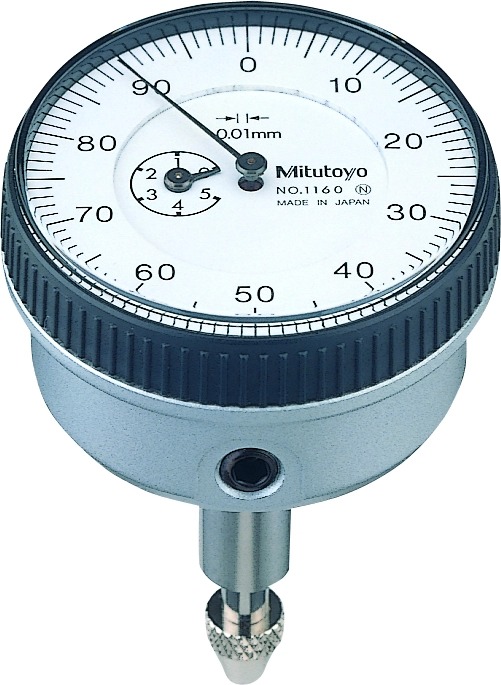

The Mitutoyo back plunger dial indicator is designed with the measuring spindles on the back of the indicator. This type of indicator offers the same precision and durability as other Mitutoyo dial indicators, but is ideal for use in small spaces where graduations of standard dial indicators are difficult to see. The 1160A back plunger style makes this type of indicator suitable for mounting on leveling machine tool tables or inspection jigs. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools.

Features:
Available in Metric and Inch models
Shockproof models available
Available as a one revolution type model
Back plunger performs full stroke measurements
A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range
Unique shock-proof mechanism protects against shock from sudden spindle retraction
The 1160A includes limit markers and rotating bezel
Rack gear is machine ground for tighter fit, increased accuracy
Greater rigidity in the bearing plate reduces retracing error by up to 20%
4-Screw mounting increases impact resistance for better, longer accuracy
No through screw hole on the frame provides better dust resistance
Contact point is carbide tipped for lasting accuracy, durability
Crystal is glare-free with a scratch-resistant coating
Manufactured to meet ANSI/AGD and ISO/JIS standards
Supplied in a fitted plastic case
