$121.54$110.49 Ex. GST
Compact and versatile, the Series 2 range includes models for virtually any application. They have a hardened stainless steel gear train which ensures a high level of shock resistance and durability. Additional features include. A rubber shock absorber on top of the inner frame to soften spindle lifting shock. Hardened stainless steel stem. This range has a bezel diameter of 58 mm/2.283″.

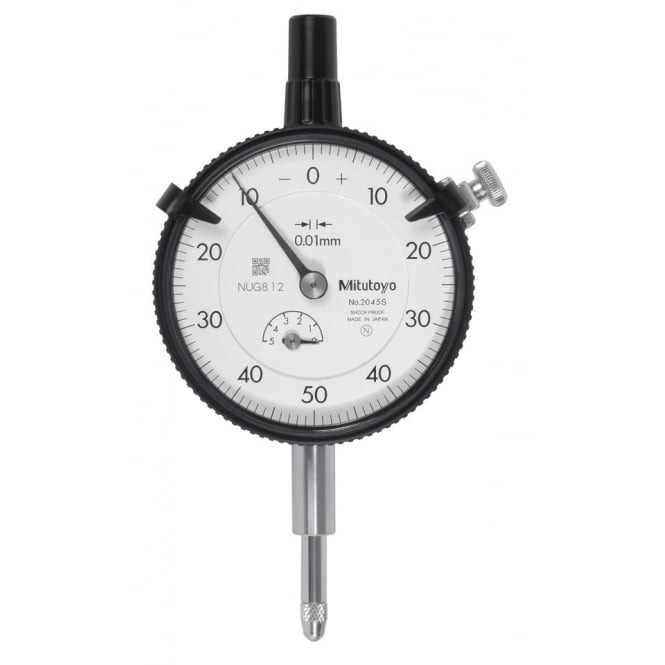

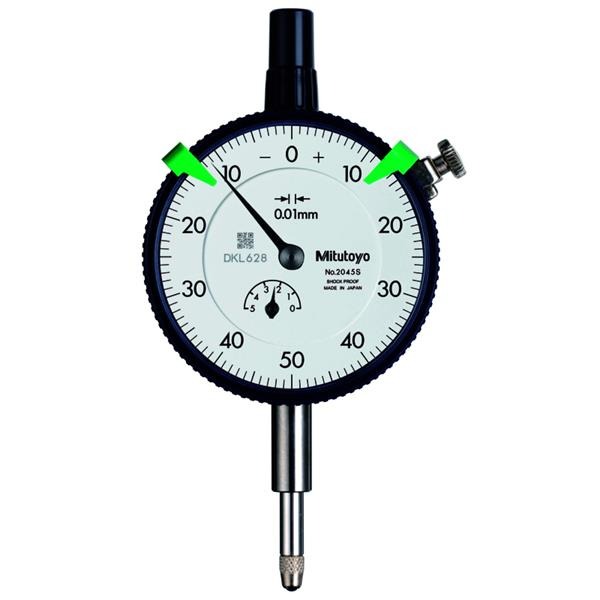

This is a standard type metric dial indicator with 0.01 mm scale graduation, with bezel Ø 57 mm, 5 mm range
Features:
Standard 0.01 mm graduation dial gauges having an outer frame with an outside diameter of 57 mm. All types come with limit pins and an outer frame clamp as standard
The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools
Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure countermeasures against water and oil permeation via the front face
The stem spindle is made of high-strength quench-hardened stainless steel which resists strenuous use
A carbide contact point is used
The grand gear uses stainless steel that is resistant to wear and deformation
Application of a hard coating on the surface of the crystal makes the gauge highly scratch- and chemical-resistant
| Weight | 0.4309 kg |
|---|---|
| Dimensions | Length 12.95cm x Width 8.38cm x Depth 6.1cm |
| barcode | |
| Additional Information | Type: Plunger |
