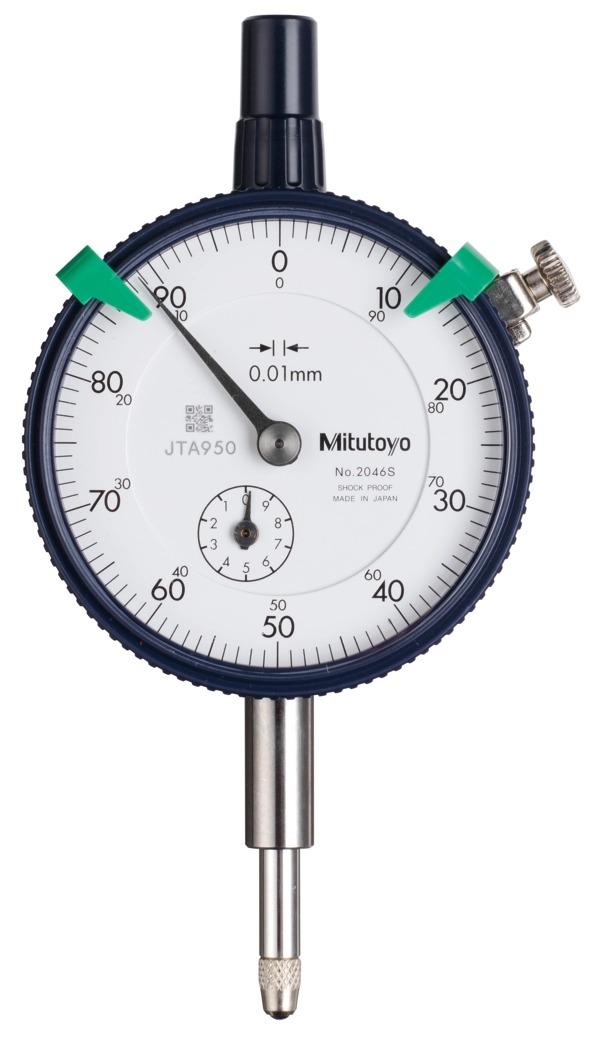

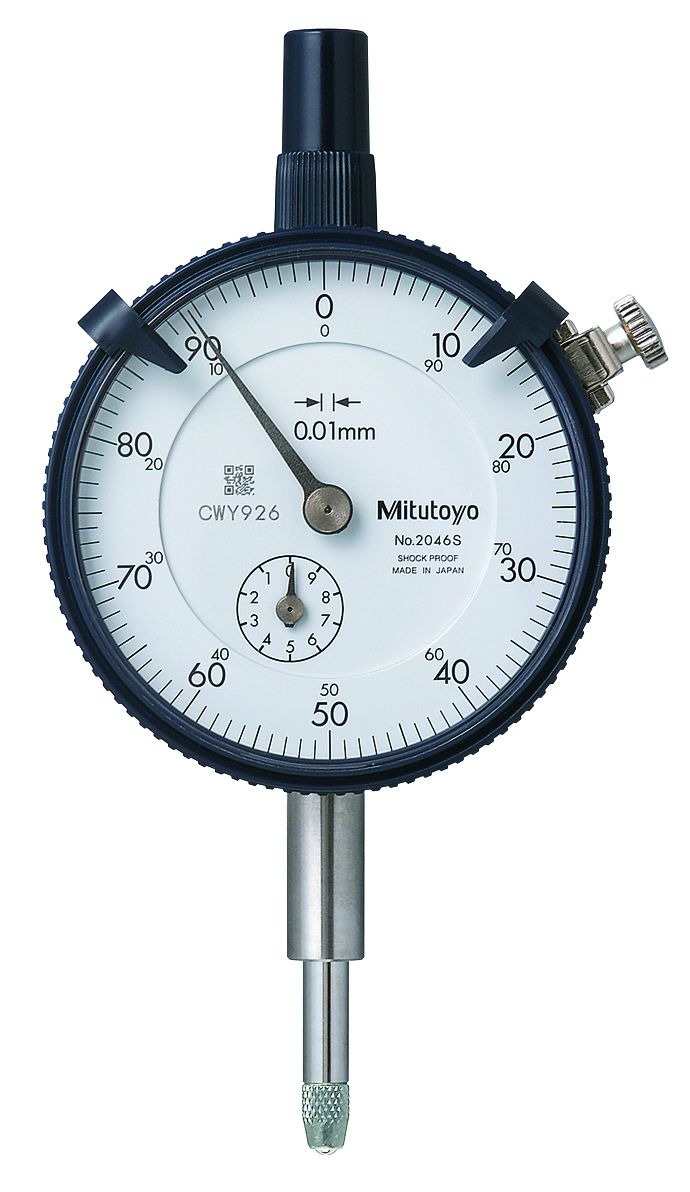

Mitutoyo DIAL INDICATOR 2046S-09

Product Code: 2046S-09

$106.48$96.80 Ex. GST

Product Code: 2046S-09 SKU 2046S-09 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

This is a standard dial indicator. It offers you the following benefits:
Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.

Additional information

Weight 0.1460 kg
Dimensions Length 12.95cm x Width 8.38cm x Depth 6.1cm
barcode
Additional Information

Digital/Analog: Analog
Inch-Metric: Metric
Functions: ISO type
Type: EN ISO Standard
Range: 10 mm
Range per rev.: 1 mm
Graduation: 0.01 mm
MPE any 1/10 revolution: 5 µm
MPE any 1/2 revolution: 9 µm
MPE any 1 revolution: 10 µm
MPE measuring range: 15 µm
H MPE (Hysteresis): 3 µm
R MPE (Repeatability): 3 µm
Mass: 146 g
Stem: 8 mm
Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial: Yes
Shockproof: Yes

Brand

Mitutoyo
