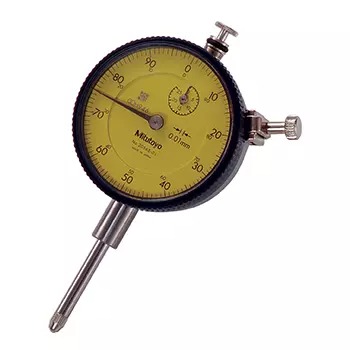

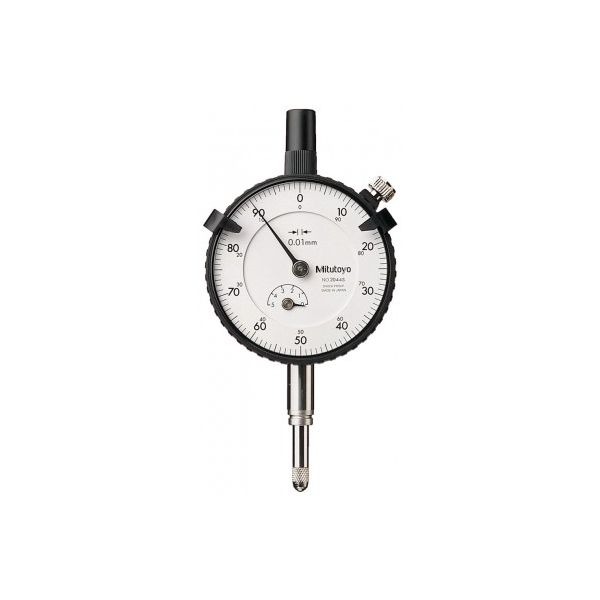

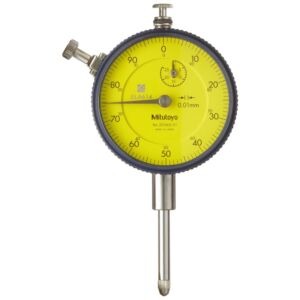

The Mitutoyo 2056SB-01 Series 2 Dial Indicator has the following specifications:
Range: 0-25mm
Graduations: 0.01mm
Range/Rev: 1mm
Dial Reading: 0-100
Type: With Flat Back
Accuracy First 2.5 Rev: +/- 0.01mm
Overall Accuracy: +/- 0.025mm
Measuring Force: 2.5N or less
Stem/Shank: 3/8″
Contact Point: #4-48 UNF
Type: ANSI/AGD
Jeweled Bearing Type: N
With Damper at Lowest Rest Point Type: N
Features:
Standard 0.01mm graduation dial gauges having an outer frame with an outside diameter of 57mm. All types come with limit pins and an outer frame clamp as standard.
The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure countermeasures against water and oil permeation via the front face.
The stem spindle is made of high-strength quench-hardened stainless steel which resists strenuous use.
A carbide contact point is used.
The grand gear uses stainless steel that is resistant to wear and deformation.
Application of a hard coating on the surface of the crystal makes the gauge highly scratch- and chemical-resistant
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information | Measurement Units: Metric |
