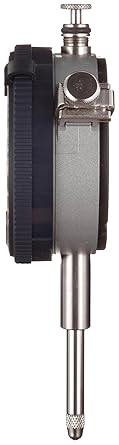

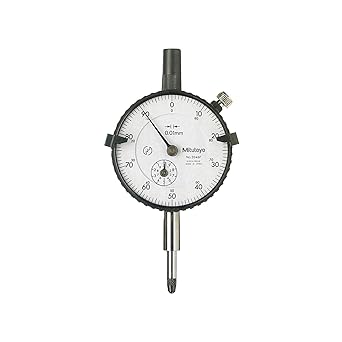

Mitutoyo Dial Indicator 2310S-10

Description

A Mitutoyo multi-revolution dial indicator suited to general measurement applications. The jewelled movement provides lowest friction and stiction for smooth and precise operation and the dual-reading scale aids measurement in both directions. Standard 0.01 mm graduation dial gauges having a bezel with an outside diameter of 57 mm. All types come with limit markers and a bezel clamp as standard. • The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools. • Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penetration. • The stem and plunger are made of high-strength quench-hardened stainless steel suitable for heavyduty use. • A carbide contact point is used. • The grand gear is made of stainless steel with high resistance to wear and deformation. • Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack.
