$176.86$160.78 Ex. GST

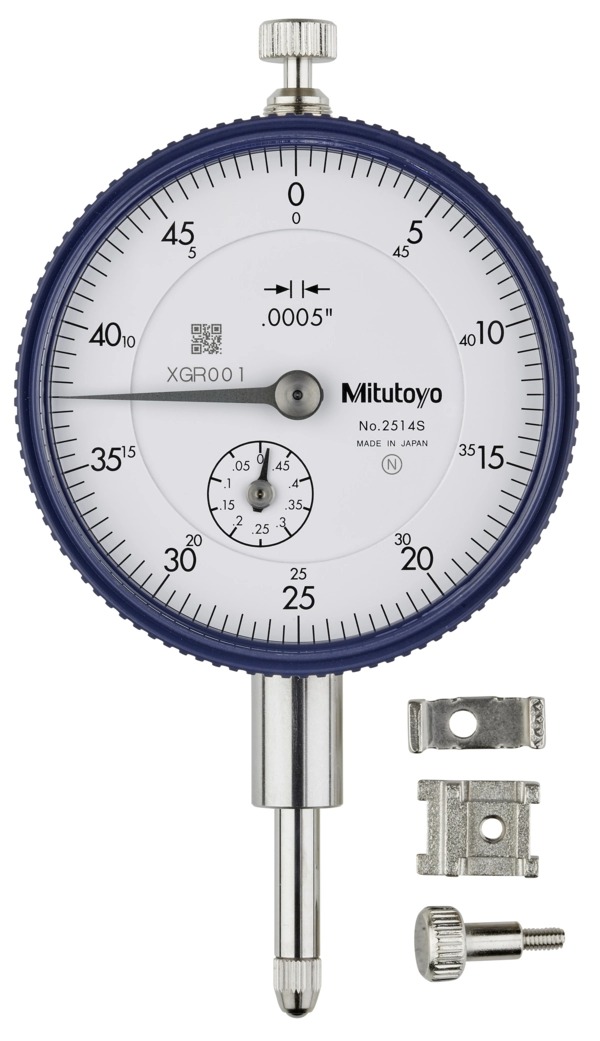

The Mitutoyo 2514A Series 2 Standard Type Dial Indicator has the following specifications:Range: 0-.500″
Graduation: .0005″
Range/Rev: .05″
Dial Reading: 0-50
Type: lug back
Accuracy (First 2.5 Rev): +/- .0005″
Accuracy (Overall): +/- .002″
Measuring force: 2.5N or less
Stem/Shank: 3/8″
Contact Point: #4-48 UNF Thread
Shockproof Type: No
Reverse Reading Type: No
Jeweled Bearing Type: No
Type: ANSI/AGD
The Mitutoyo inch reading dial indicator performs with excellent accuracy and reliability, and it is available in several graduations and ranges for use in the widest range of applications. The 2514A stem and spindle are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. Secured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front face. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools. The Mitutoyo Series 2 standard diameter dial indicator with inch reading offers simplicity, accuracy and durability for any application, making it our most popular indicator. This indicator conforms to ANSI/AGD Standards.
| Weight | 0.1640 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog Features: |
