$243.71$221.55 Ex. GST
Calibrated, standard dial indicator with a 0.375″ diameter stem, a #4-48 UNF contact point thread mount, a measurement range of 0 to 0.025″, graduations of 0.0001″, and an accuracy of + or – 0.0001″, for measuring surface variations in fractional inches

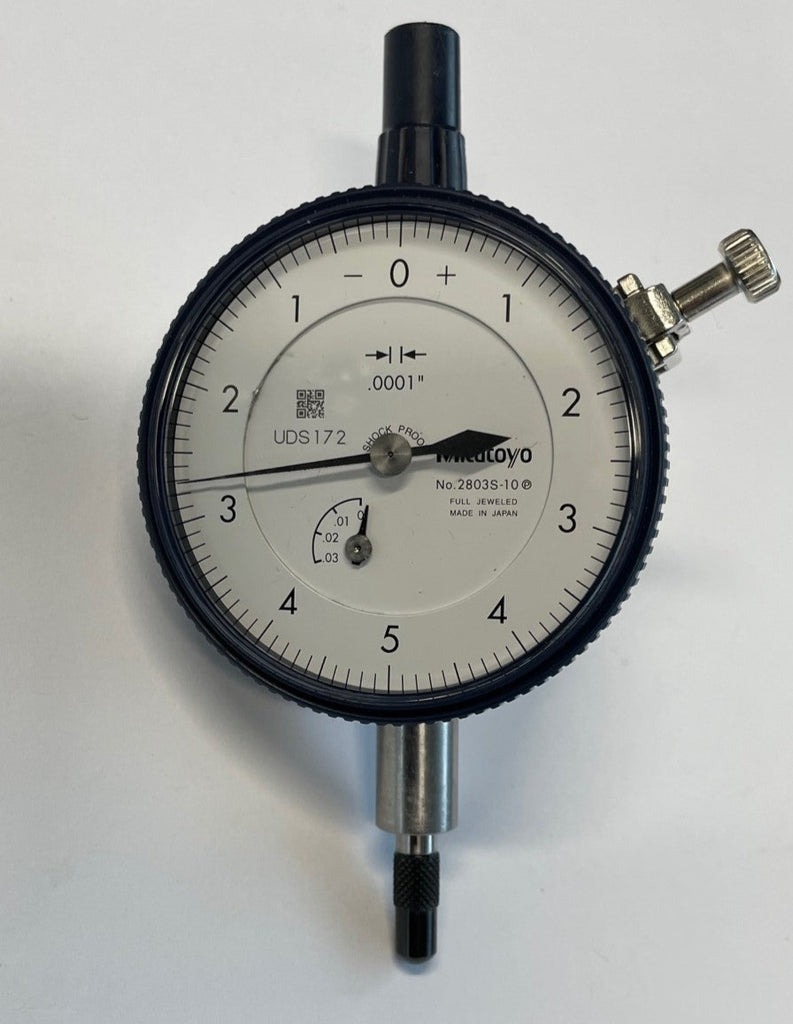

Dial has a white face with contrasting hand, units displayed in fractional inches, and a rotating bezel and limit markers

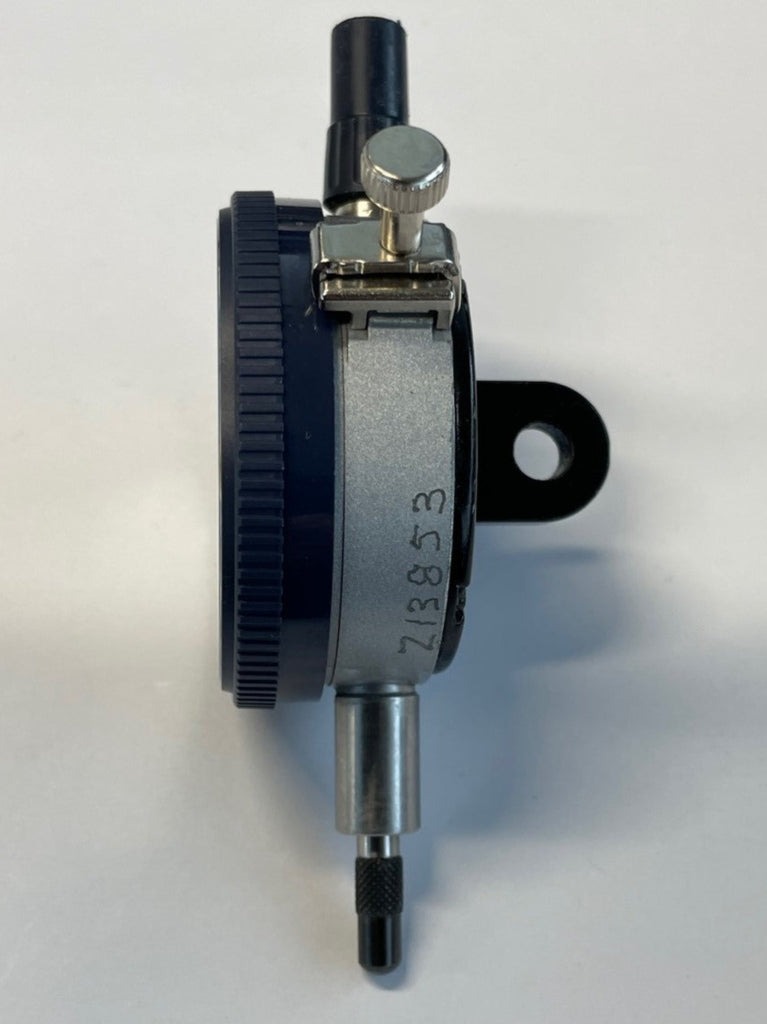

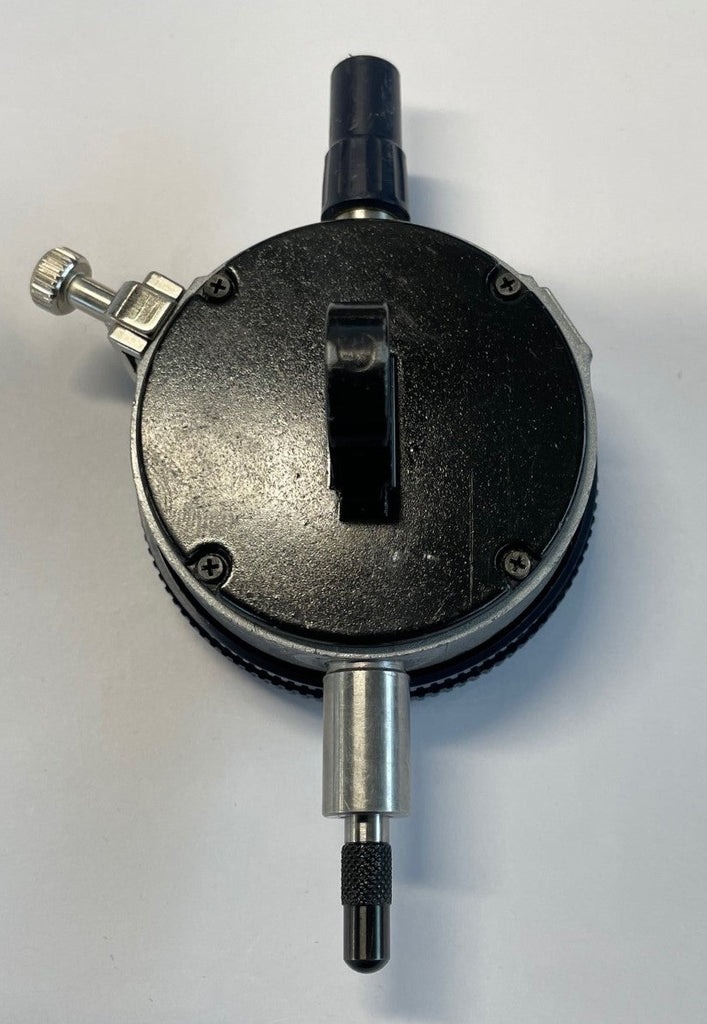

Stem design provides long clamping range, no through screw-hole on the frame for dust- and water resistance, lug back for mounting, and involute curved lifting lever provides smooth movement of spindle and dovetail joint for tool-less connection
Meets ANSI standards, Japanese Industrial Standard (JIS) B7503-1997, and American Gage Design (AGD) standards for face and thread size, and bezel and stem diameter
Includes a Mitutoyo Certificate of Calibration that the tool has been calibrated, and meets the International Organization for Standardization/International Electrotechnical Commission (ISO/IEC) 17025 International Standard for testing and calibration laboratories
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information | Type: Plunger |
