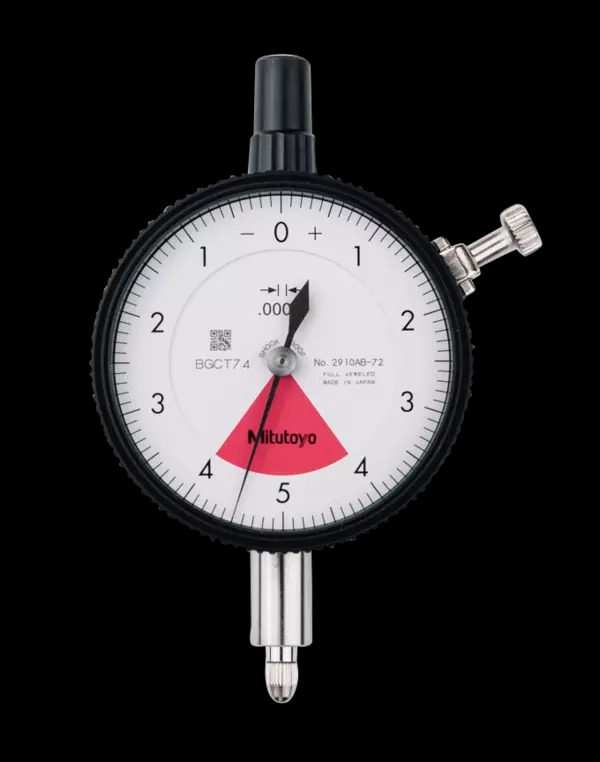

Mitutoyo DIAL INDICATOR 2910AB-72

Digital/Analog: Analog
Inch-Metric: Inch
Delivered: With certificate of inspection, bezel clamp
Range: 0.008 "
Plunger Stroke: 2.2 mm
Range per rev.: 0.01 "
Dial reading: 4-0-4
Graduation: 0.0001 "
H MPE (Hysteresis): 0.0001 "
R MPE (Repeatability): ±0.00003 "
MPE first one revolution: ±0.0001 "
Type: ANSI/AGD Standard
Measuring force: 0.4-2.5 N
Mass: 138 g
Stem: 9.52 mm / 0.375 "
Contact point: Carbide tipped, thread: 4-48UNF
One revolution: Yes
Cushioned end point: Yes
Shockproof: Yes

Features:

Metric and Inch models available
Available in eight different ranges and four graduations
Metric model has a yellow dial face
Bezel diameter: 2.24″
Offered with flat back or lug back for mounting purposes
Unique shock-proof mechanism protects against shock from sudden spindle retraction
2910A-10 includes green limit markers for quick, easy tolerance judgments
Thumb screw bezel lock is easy-to-use for zeroing
Rack gear is machine ground for tighter fit, increased accuracy
Greater rigidity in the bearing plate reduces retracing error by up to 20%
4-Screw mounting increases impact resistance for better, longer accuracy
No through screw hole on the frame provides better dust resistance
Contact point is carbide tipped for lasting accuracy, durability
Indicator has improved resistance to shop-floor contaminants such as water and dust
Indicator is about 40% lighter than a conventional dial indicator
Crystal is glare-free with a scratch-resistant coating
2910AB-72 meets ANSI/AGD standards
Supplied in a fitted plastic case
