$174.71$158.83 Ex. GST

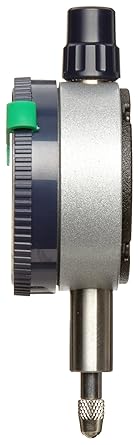

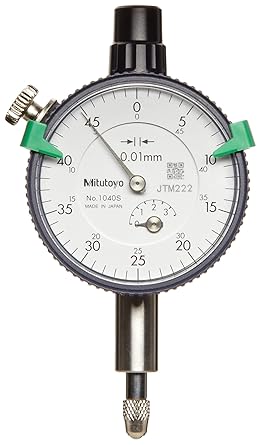

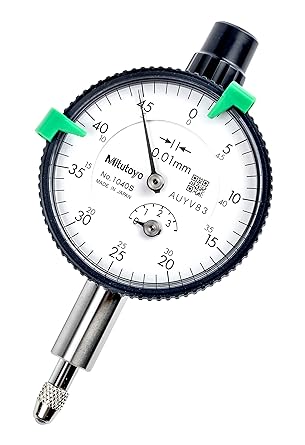

Dial indicators are Mitutoyo’s most popular, and have the widest application. Standard 0.01mm graduation dial gauges having an outer frame with an outside diameter of 57mm. All types come with limit pins and an outer frame clamp as standard. Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure countermeasures against water and oil permeation via the front face. The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
The stem spindle is made of high strength quench hardened stainless steel which resists strenuous use also carbide contact point is used
The grand gear uses stainless steel that is resistant to wear and deformation, application of a hard coating on the surface of the crystal makes the gauge highly scratch and chemical resistant
Stem diameter 8mm, M2.5-0.45 thread size and Measuring force is 2.0N or less
Shockproof
| Weight | 0.0000 kg |
|---|---|
| Dimensions | Length 15.01cm x Width 15.01cm x Depth 10.01cm |
| barcode | |
| Additional Information |
