Mitutoyo DIAL INDICATOR 2972AB

Description

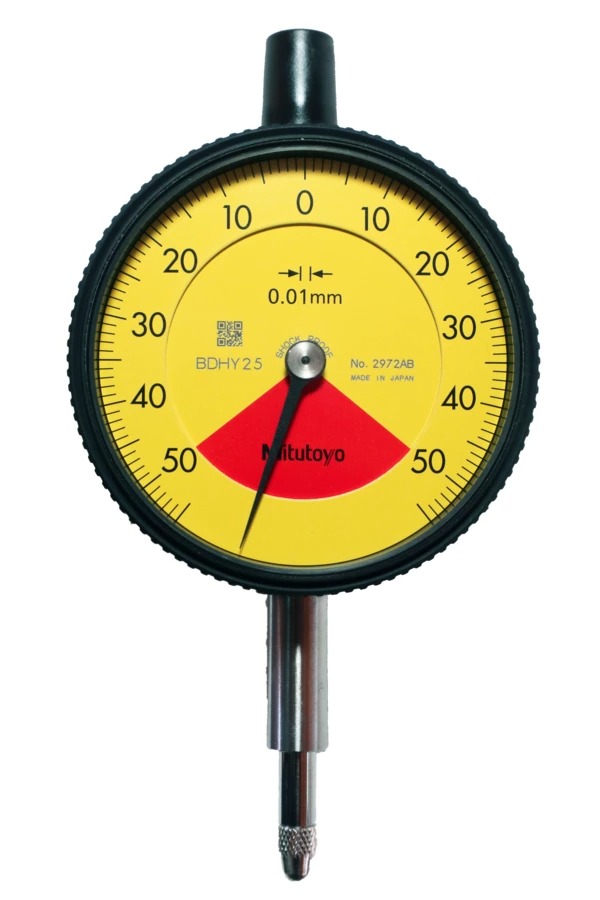

2972AB Mitutoyo Dial Indicator Series 2 Standard One Rev Type for Error-free Reading: 0-1mm

The Mitutoyo 2972AB Dial Indicator Series 2 One Revolution Type for Error-free reading has the following specifications:

Range: 0-1mm
Full Stroke: 0-1.4mm
Graduations: 0.01mm
Dial Reading: 50-0-50
Type: flat back
Accuracy: +/- 0.012mm
Measuring Force: 0.4-1.4N
Stem/Shank: 8mm
Contact Point: M2.5 x 0.45 Thread
Type: ISO/JIS
One Revolution Type: Yes
Shockproof Type: Yes
Waterproof Type: No
Dustproof Type: Yes
Jeweled Bearing Type: No
The Mitutoyo 2972AB standard diameter-sized, single-revolution dial indicator offers complete measurement with one sweep of the hand to eliminate miscounting errors on an easy-to-read scale. Conforms to ISO/JIS standards. The Mitutoyo one revolution dial indicator allows the entire spindle travel, or range, with one sweep of the hand. This eliminates the possibility of reading errors from miscounting multiple hand revolutions. The one-revolution indicator is ideal for determining if a spindle range is within or outside a tolerance. The jeweled bearing provides great wear resistance and low friction movements for smooth, precise operations. The stem and spindle are constructed of hardened steel for better durability. The glare-free crystal has a scratch-resistant coating for clearer readings and better durability. A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range.

Additional information

Weight	0.0700 kg
barcode
Additional Information	Features: Available in Metric models only Available in eight different ranges and four graduations Bezel diameter: 57mm Offered with flat back or lug back for mounting purposes Unique shock-proof mechanism protects against shock from sudden spindle retraction Includes green limit markers for quick, easy tolerance judgments Thumb screw bezel lock is easy-to-use for zeroing Rack gear is machine ground for tighter fit, increased accuracy Greater rigidity in the bearing plate reduces retracing error by up to 20% 4-Screw mounting increases impact resistance for better, longer accuracy No through screw hole on the frame provides better dust resistance Contact point is carbide tipped for lasting accuracy, durability Indicator has improved resistance to shop-floor contaminants such as water and dust Indicator is about 40% lighter than a conventional dial indicator Crystal is glare-free with a scratch-resistant coating The 2972AB is manufactured to meet ISO/JIS standards Supplied in a fitted plastic case Digital/Analog: Analog Inch-Metric: Metric Type: EN ISO Standard Delivered: With certificate of inspection Range: 1 mm Plunger Stroke: 3.5 mm Range per rev.: 1.4 mm Dial reading: 50-0-50 Graduation: 0.01 mm MPE any 1/10 revolution: 5 µm MPE measuring range: 7 µm H MPE (Hysteresis): 3 µm R MPE (Repeatability): 3 µm Measuring force: 0.4-1.4 N Mass: 70 g Stem: 8 mm Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm One revolution: Yes Cushioned end point: Yes

Weight

0.0700 kg

barcode

Additional Information

Features:
Available in Metric models only
Available in eight different ranges and four graduations
Bezel diameter: 57mm
Offered with flat back or lug back for mounting purposes
Unique shock-proof mechanism protects against shock from sudden spindle retraction

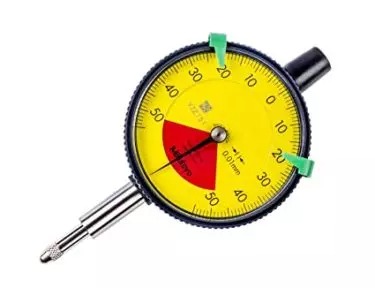

Includes green limit markers for quick, easy tolerance judgments
Thumb screw bezel lock is easy-to-use for zeroing
Rack gear is machine ground for tighter fit, increased accuracy
Greater rigidity in the bearing plate reduces retracing error by up to 20%
4-Screw mounting increases impact resistance for better, longer accuracy
No through screw hole on the frame provides better dust resistance
Contact point is carbide tipped for lasting accuracy, durability
Indicator has improved resistance to shop-floor contaminants such as water and dust
Indicator is about 40% lighter than a conventional dial indicator
Crystal is glare-free with a scratch-resistant coating
The 2972AB is manufactured to meet ISO/JIS standards
Supplied in a fitted plastic case

Digital/Analog: Analog
Inch-Metric: Metric
Type: EN ISO Standard
Delivered: With certificate of inspection
Range: 1 mm
Plunger Stroke: 3.5 mm
Range per rev.: 1.4 mm
Dial reading: 50-0-50
Graduation: 0.01 mm
MPE any 1/10 revolution: 5 µm
MPE measuring range: 7 µm
H MPE (Hysteresis): 3 µm
R MPE (Repeatability): 3 µm
Measuring force: 0.4-1.4 N
Mass: 70 g
Stem: 8 mm
Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm
One revolution: Yes
Cushioned end point: Yes
