Mitutoyo DIAL INDICATOR 2990T-10

Product Code: 2990T-10

$542.23$492.94 Ex. GST

Product Code: 2990T-10 SKU 2990T-10 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Mitutoyo 2990T-10 Description
?

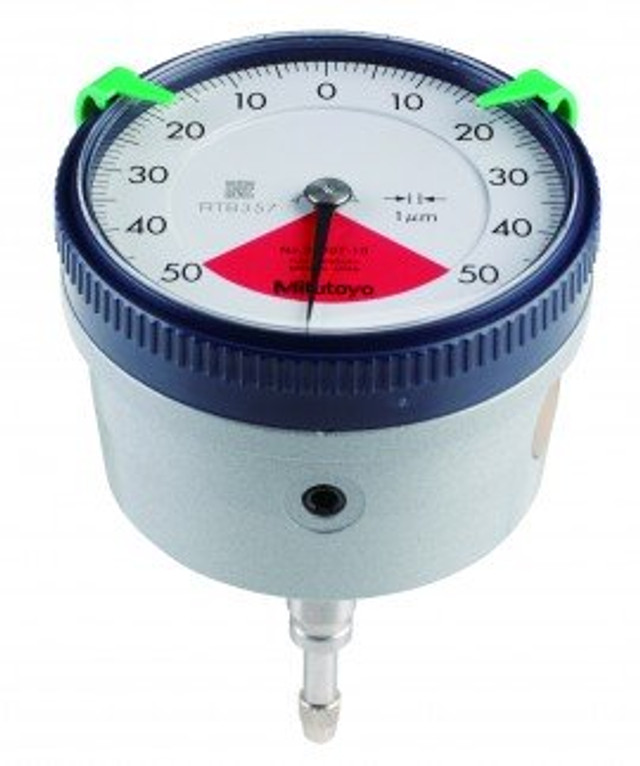

The Mitutoyo 2990T-10 Series 2 Back-Plunger Dial Indicator makes it easy to view your critical readings. The prominent graduations allow you to see results clearly, even in places where space is tight. The dial indicator is ideal for leveling machine tool tables, inspection jigs and other applications. Shockproof. Jeweled bearings.

Features

0.001 mm graduations are easy to see in compact workspaces
Designed for use with compatible leveling machine tool tables, inspection jigs and more
Shockproof for enhanced operator safety
Robust design is suited for most work environments
Back-plunger style easily mounts where needed
Force: 0.4 to 1.5 N
Type: 1 revolution
Jeweled bearings

Additional information

Weight 0.2200 kg
Dimensions Length 10cm x Width 10cm x Depth 5cm
barcode
Additional Information

Manufacturer: Mitutoyo
Unit of Measurement: MM
Graduations: 0.001
Range Per Revolution: 0.14
Range: 0.1
Revolution Counter: No
Dial Reading: 50-0-50
Back Type: Back Plunger
Accuracy: ±0.005 mm
Measuring Force (min): 0.4 N
Measuring Force (Max): 1.5 N
Features: One revolution, Shockproof, Jeweled bearing
Stem Diameter: 8 mm
Thread: M2.5 x 0.45 Thread
Dial Face Color 1: White
