Mitutoyo Dial Indicator 3050S

Product Code: 3050S

$300.08$272.80 Ex. GST

Product Code: 3050S SKU 3050S Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

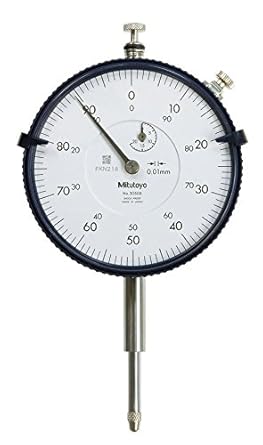

The 3050S Dial Indicator performs with excellent accuracy and reliability. The stem and spindle are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. The secured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front face. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools.

Additional information

Weight 0.0050 kg
Dimensions Length 8.99cm x Width 14cm x Depth 32cm
barcode
Additional Information

Type: simple
Style of Indicator: Large Face Dial Gauges Metric
Face Diameter: 52.6 mm
Measurement units: Metric
Indicator Range: 20 mm
Mounting Diameter: 8 mm
Measuring Range: 20 mm
Graduation: 0.01 mm
Dial Reading: 0-100
Scale: 0-100
Accuracy: 0.02 mm
Back: Lug
Digital, Non-Digital: Non Digital
Measuring Force: 2 N
Remarks for Indicators: with Lug, with damper at lowest rest point
Features for Indicators: Dial gauges with a large-diameter dial face to ease reading. All types come with limit pins and a bezel clamp as standard.

Brand

Mitutoyo
