$285.40$259.45 Ex. GST

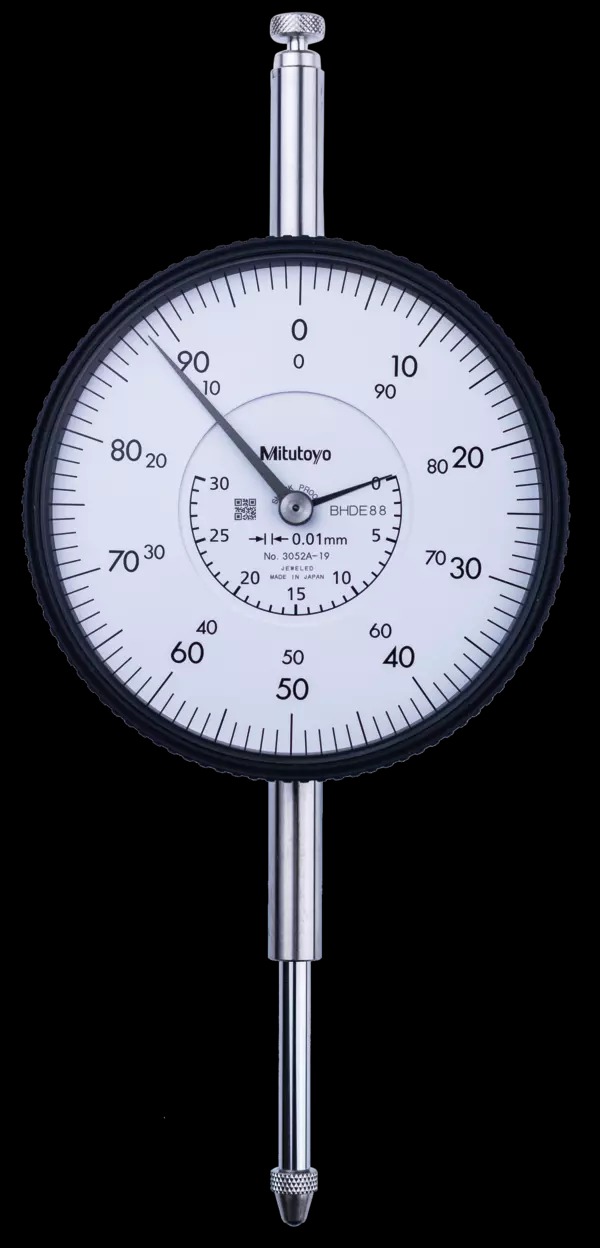

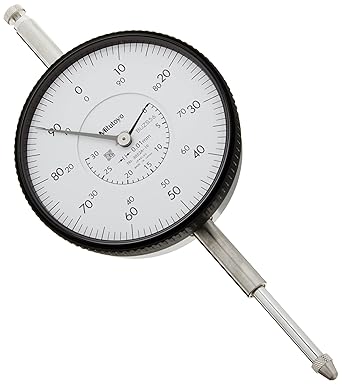

3052A-19 Mitutoyo Series 3 Dial Indicator with Large Dial Face: 0-30mm
The Mitutoyo 3052A-19 Dial Indicator with Large Dial Face has the following specifications:
Range: 0-30mm
Graduation: 0.01mm
Range/Rev: 1mm

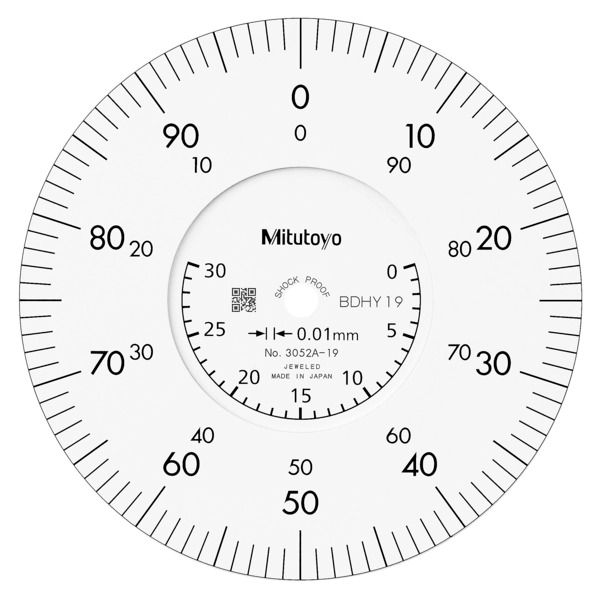

Dial Reading: 0-100
Type: with flat
Accuracy: +/- 0.025mm
Measuring force: 2.5N or less
Stem/Shank: 8mm
Contact Point: M2.5 x 0.45 Thread
Shockproof Type: Yes
Jeweled Bearing Type: Yes
With Coaxial Revolution Counter Type: Yes
With Damper at Lowest Rest Point Type: No
Type: ISO/JIS

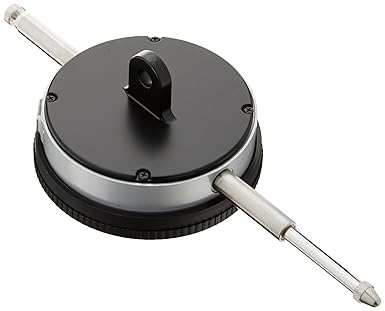

The Mitutoyo large dial face dial indicator combines excellent accuracy and reliability with a large, easy-to-read dial face. The 3052A-19 stem design provides a long clamping range for use in many different applications. The spindle and stem are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. The absence of a through screw hole helps protect the indicator against water and oil permeation. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools. The Mitutoyo Series 3 large diameter dial indicator measures surface variations with great accuracy displayed on an easy-to-read dial face.
| Weight | 0.2850 kg |
|---|---|
| barcode | |
| Additional Information | Features: Digital/Analog: Analog |
