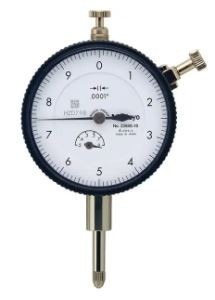

Mitutoyo DIAL INDICATOR 3417A

Description

The Mitutoyo 3417A Dial Indicator with Large Dial Face has the following specifications:

Range: 0-1″
Graduation: .001″
Range/Rev: .1″
Dial Reading: 0-50-0
Type: with lug
Accuracy (First 2.5 Rev): +/- .001″
Accuracy (Overall): +/- .002″
Measuring force: 1.8N or less
Stem/Shank: 3/8″
Contact Point: #4-48 UNF Thread
Shockproof Type: No
Jeweled Bearing Type: No
With Coaxial Revolution Counter Type: No
Type: ANSI/AGD

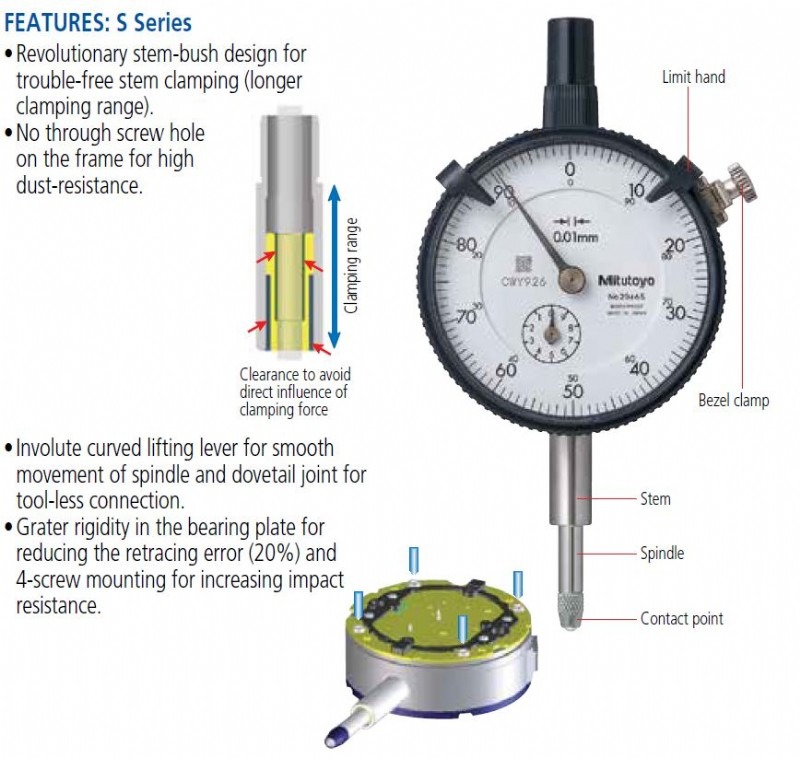

The Mitutoyo large dial face dial indicator combines excellent accuracy and reliability with a large, easy-to-read dial face. The 3417A stem design provides a long clamping range for use in many different applications. The spindle and stem are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. The absence of a through screw hole helps protect the indicator against water and oil permeation. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools. The Mitutoyo Series 3 large diameter dial indicator measures surface variations with great accuracy displayed on an easy-to-read dial face.
