$834.03$758.21 Ex. GST

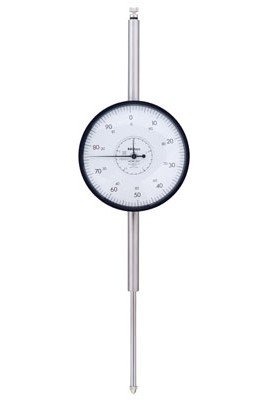

The Mitutoyo 4887A-19 Series 4 Dial Indicator with Large Dial Face has the following specifications:
Range: 0-3″
Graduation: .001″
Range/Rev: .1″
Dial Reading: +/- 0-100
Type: With Lug Back
Accuracy (First 2.5 Rev): +/- .001″
Accuracy (Overall): +/- .005″
Measuring force: 3.0N or Less
Stem/Shank: 3/8″
Contact Point: #4-48 UNF Thread
Shockproof Type: Yes
Jeweled Bearing Type: Yes
With Coaxial Revolution Counter Type: Yes
Type: ANSI/AGD
The large-faced Mitutoyo dial indicator combines excellent accuracy and reliability with an easy-to-read, 3.62-inch/92mm graduation dial face. The 4887A-19 stem design provides a long clamping range for use in many different applications. The spindle and stem are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. The absence of a through screw hole helps protect the indicator against water and oil permeation. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools.
| Dimensions | Length 12.09cm x Width cm x Depth cm |
|---|---|
| barcode | |
| Additional Information | Features: Supported Measurement Unit(s): in |
