Mitutoyo Dial Indicator A 1960

Description

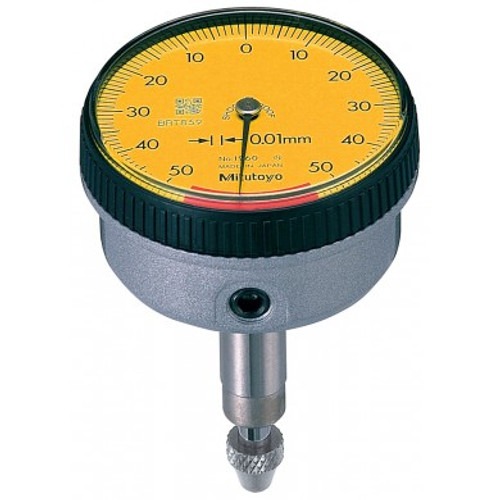

A Mitutoyo shockproof, one-revolution, back-plunger type balanced-dial indicator suited to comparison measurement applications on measuring jigs and similar.

Type Plunger
Dial Type Balanced
Range 1mm
Accuracy ±14µm
Graduation 0.01mm
Repeatability ±5µm
Measuring Force 1.4N or less
Graduation 50-0-50
Remarks One revolution type

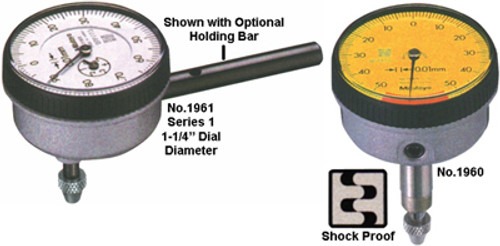

Mitutoyo’s back plunger type dial indicators are built with the measuring plunger (or spindle) protruding from the back of the body instead of the side. This type of indicator offers the same precision and durability as all other Mitutoyo dial indicators, and operates very effectively with optional holding bars.

Suitable for mounting onto levelling machine tool tables or inspection jigs, and for use in small spaces where the graduations of standard dial gauges are difficult to see.
