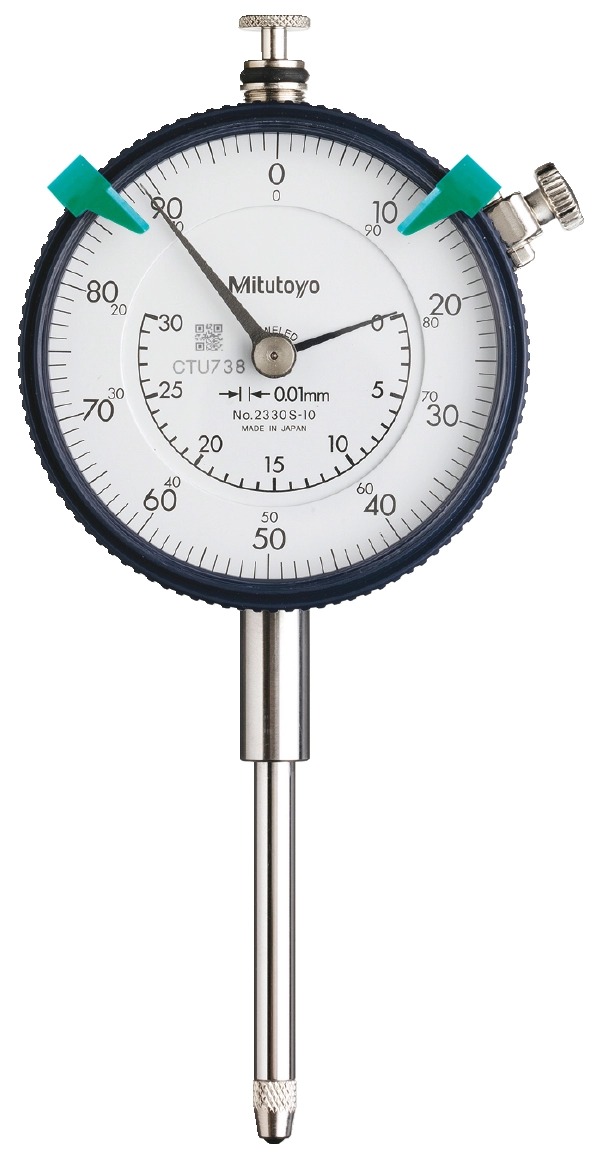

Mitutoyo Dial Indicator A 2330S-10

Description

A Mitutoyo shockproof, multi-revolution dial indicator suited to general measurement applications. The jewelled movement provides lowest friction and stiction for smooth and precise operation and the dual-reading scale aids measurement in both directions.Long stroke dial indicators with a ø57 mm outer frame. All models are equipped with limit markers and a bezel clamp as standard. An O-ring is employed to ensure air-tightness between the outer frame and the crystal case to prevent water or oil penetration. Both the stem and the plunger are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. A carbide-tipped contact point is employed. The grand gear is made of stainless steel with high resistance to wear and deformation. Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack. The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools
