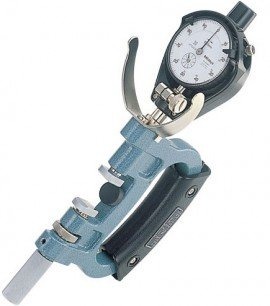

Mitutoyo Dial Snap Gage B 201-162

Description

The Mitutoyo 201-162 Dial Snap Gage – has the following specifications:
Range: 11 – 12″
Measuring force: .00025″ or less
Parallelism: .00025″ or less
Recommended dial indicator (optional): 2803SB-10 (.0001″ reading)
Accuracy: Refer to the list of specifications
Anvil retracting stroke: .078″ / 2mm
Anvil positioning range: 1″ / 25mm
Anvil flatness: .00004″ / 1?m

Features:
Designed for quick go/no-go judgment of diameters of cylinders and shafts in machining processes.
Dial indicator is optional.
Wide (.53 x .47″ / 13.5 x 12mm), flat carbide anvils
Both front edges of the anvil are chamfered for easy insertion.
