$390.60$355.09 Ex. GST

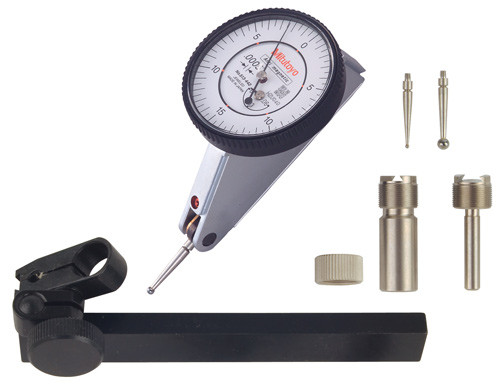

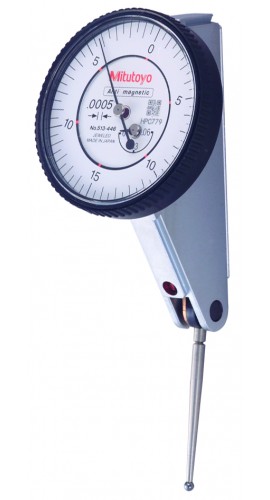

The Mitutoyo 513 series dial test indicator has a tilted face, a 0.375″ stem diameter, and inch measurements. The indicator has a reversible measuring direction and an adjustable contact point, and is used to measure surface variations in narrow or recessed areas. The face inclines 20 degrees from the axis of the indicator and three dovetail mounts, and can be mounted either horizontally or vertically from the front, top, or back of the indicator. It has a unified outer frame that prevents oil and water from permeating the front face, a hard frame body that provides rigidity and durability, and a clear, flat, and scratch-resistant crystal face. This dial indicator meets Japanese Industrial Standard (JIS) B7533-1990.
Features
Series 513 dial test indicator with reversible measuring direction and adjustable contact point, for measuring surface variations in narrow or recessed areas
Units displayed in fractional inches, and has a rotating bezel and limit markers
Face inclines 20 degrees from the axis of the indicator and three dovetail mounts for mounting horizontally or vertically from the front, top, or back of the indicator
Unified outer frame prevents oil and water from permeating the front face, a hard frame body provides rigidity and durability, and a clear, flat, crystal face is scratch-resistant
Meets Japanese Industrial Standard (JIS) B7533-1990
Applications
Ideal for the following applications: Manufacturing, Machining, Mechanical Engineering, Metalworking, Architecture
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information |
