Mitutoyo Dial Test Ind B 513-455-10T

Description

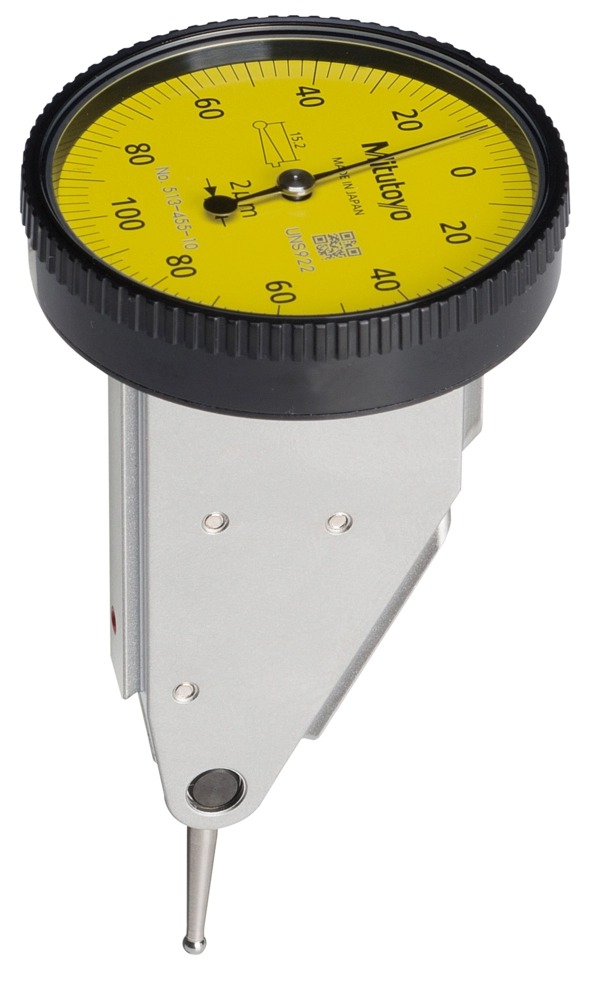

The Mitutoyo 513-455-10T Vertical Type Dial Test Indicator Full Set has the following specifications:

Range: 0.2mm
Graduation: .002mm
Accuracy: .003mm

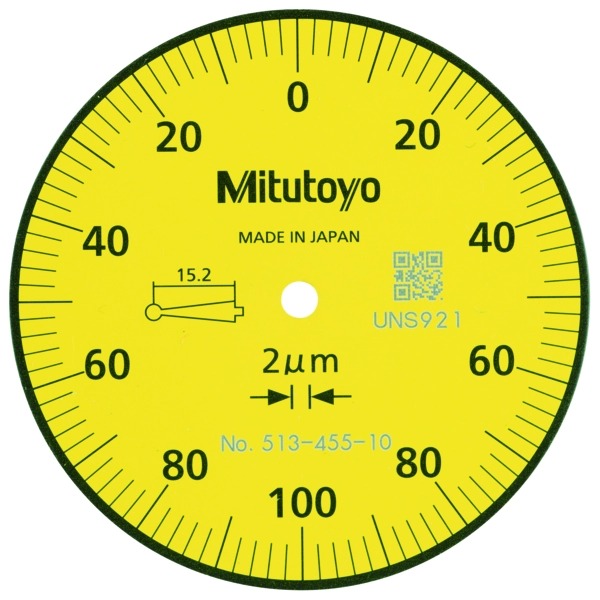

Dial reading: 0-100-0
Measuring Force: 0.3N or less
Contact Point Length: 14.7mm
Mass: 50 grams
Anti-Magnet
Jeweled Bearing
Features:

The dial face points upward, allowing users to read the graduations from the user’s side. It is convenient when measuring on the side of a large workpiece and the workbench is high.
Using the universal holder allows easy hole centering. The dial face always faces upward when the indicator is rotated for easy reading.
Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
No-clutch structure for automatic reversal of measuring direction.
One-piece bezel and crystal design with O-ring provide resistance to water and dust.
The glare-free flat crystal face has a scratch-resistant coating.
High sensitivity and quick response because of jeweled bearings.
Standard carbide contact point provide.

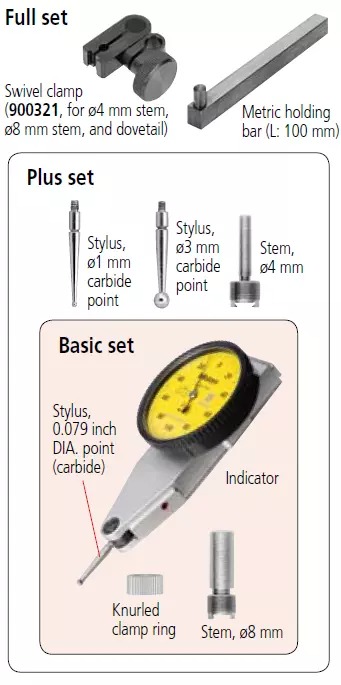

Basic Set includes test indicator with 2mm Contact Point, knurled clamp ring, and dovetail with 8mm Stem

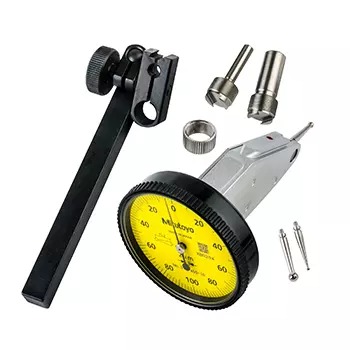

Full Set includes test indicator with 2mm diameter contact point, 1mm dia. carbide contact point, 3mm dia. carbide contact point, Dovetail with 4mm Stem, Swivel Clamp, and 100mm Holding Bar
