$334.09$303.72 Ex. GST
Full Set, Parallel Type, 0.375″ Stem Dia., White Dial, 0-15-0 Reading, 1.575″ Dial Dia., 0-0.03″ Range, 0.0005″ Graduation, +/-0.0005″ Accuracy.

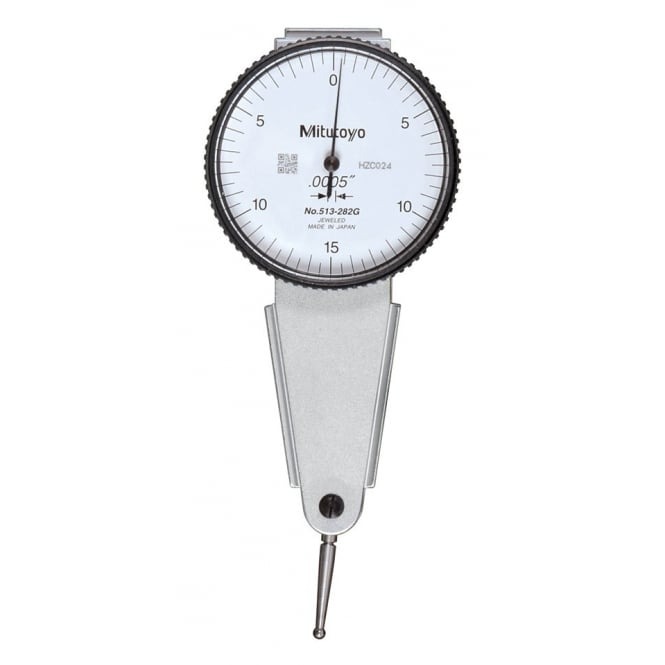

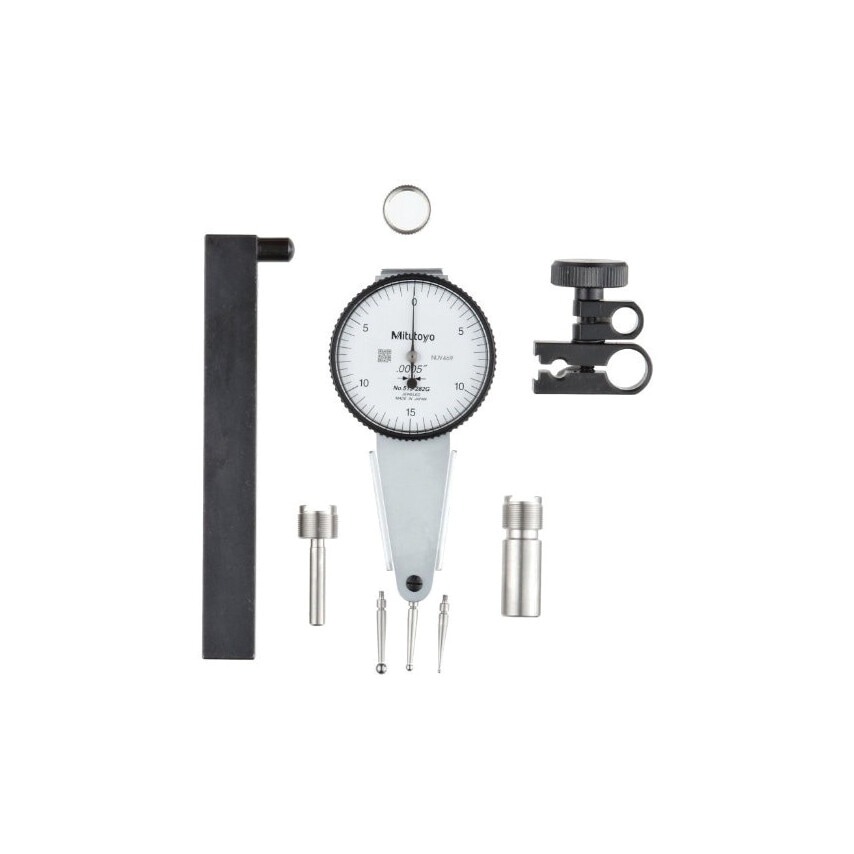

A versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories. Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators. No-clutch mechanism for automatic reversal of measuring direction. Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal. The glare-free flat crystal face has a scratch-resistant coating. High-sensitivity and quick response due to low-friction jewelled bearings.
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information | Type: Lever |
