Mitutoyo DIAL TEST INDICATOR 513-403-10E

Product Code: 513-403-10E

$242.53$220.48 Ex. GST

Product Code: 513-403-10E SKU 513-403-10E Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

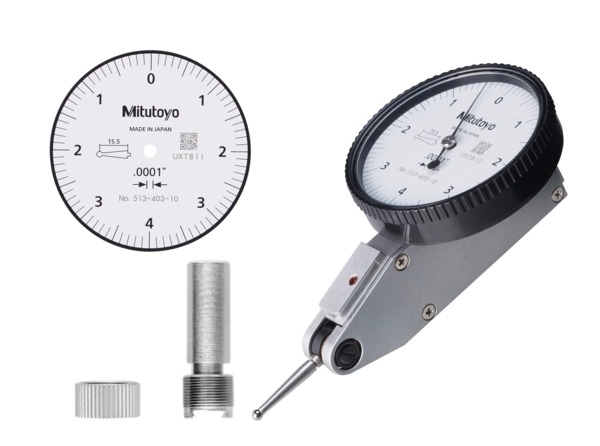

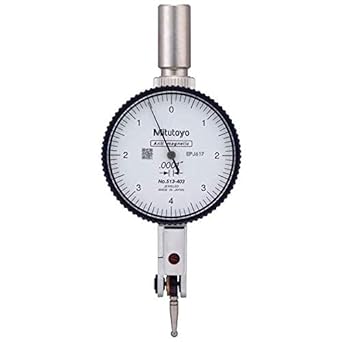

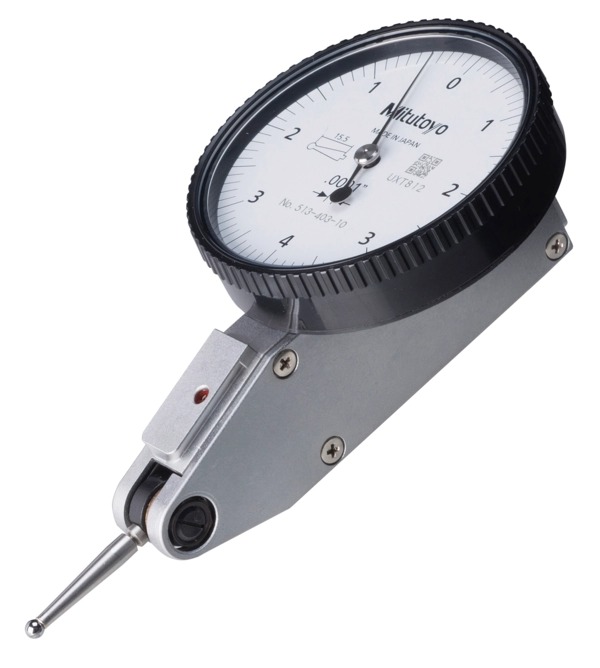

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

Additional information

Weight 0.0000 kg
Dimensions Length 13.97cm x Width 10.16cm x Depth 5.08cm
barcode
Additional Information

Digital/Analog: Analog
Inch-Metric: Inch

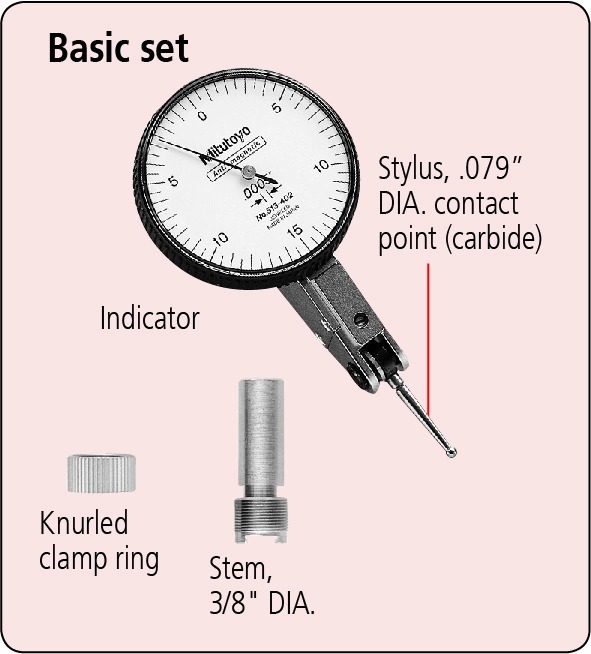

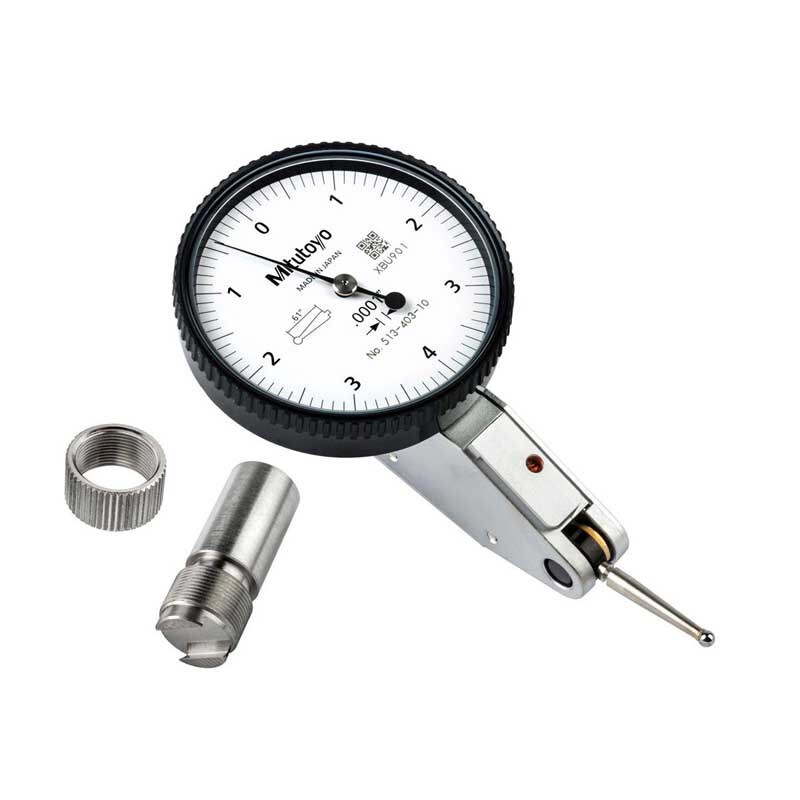

Delivered: In a box with stem ø3/8" (9.52 mm), stylus ø0.079"
Range: 0.008"
Dial Reading: 0-4-0
Graduation: 0.0001"
H MPE (Hysteresis): 0.0001"
R MPE (Repeatability): ±0.00004"
MPE First One Revolution: ±0.0001"
Type: Basic set
Measuring Force: 0.01-0.3 N
Mass: 58 g
Contact Point: Thread M 1.7 x 0.35

Brand

Mitutoyo
