$200.42$182.20 Ex. GST

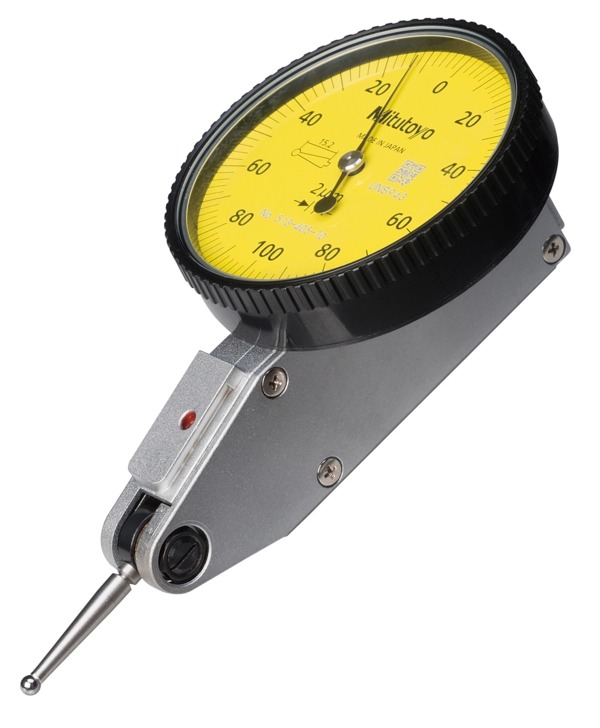

Ideal for measuring surface variations in narrow or recessed areas with high precision, this horizontal-type dial indicator features a reversible measuring direction, an adjustable contact point, and jeweled bearings for high sensitivity and quick response. In addition, the horizontal face is parallel to the axis of the indicator and features a glare-free flat crystal face with a scratch-resistant coating.
Features
Anti-magnetic
No-clutch structure provides automatic reversal of measuring direction
O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
Contact point length is printed on the dial face to avoid accuracy issues
Contact point holder prevents backlash
Contact point is carbide tipped for lasting accuracy, durability
Crystal is glare-free with a scratch-resistant coating
Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access
High sensitivity and quick response because of jeweled bearings
Applications
Measurement of narrow or recessed areas
Inside and outside diameters
Calibration Lab
| barcode | |
|---|---|
| Additional Information | Range: 0 to 0.2 mm |
