$285.76$259.78 Ex. GST

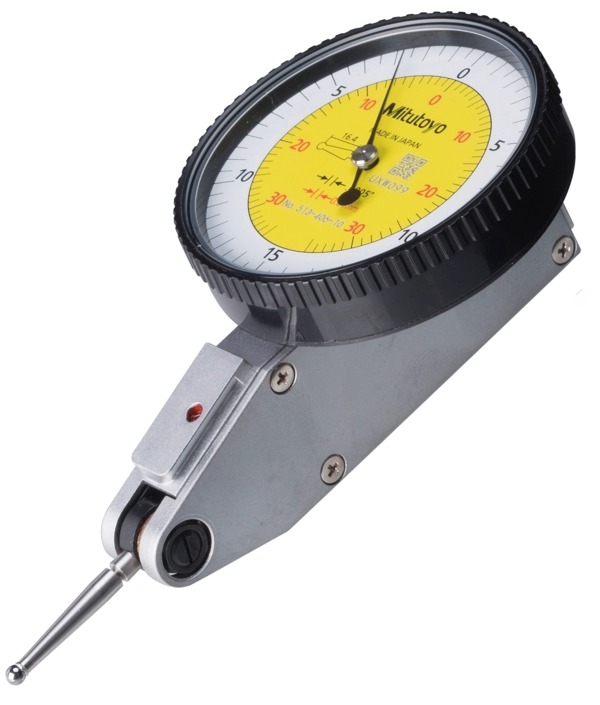

The Mitutoyo 513-406-10T Horizontal Full Set Dial Test Indicator has the following specifications:
Range: .03″/0.7mm
Graduation: .0005″/.01mm
Accuracy: +/- .0005″

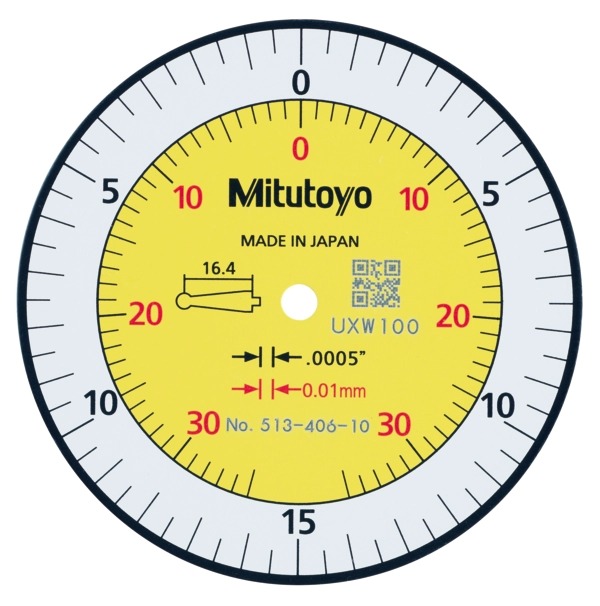

Dial reading Inch: 0-15-0
Dial reading Inch: 0-35-0
Measuring Force: 0.3N or less
Contact Point Length: 19.9mm
Anti-magnet
Jeweled bearing
Features:
Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
No-clutch structure for automatic reversal of measuring direction.
One-piece bezel and crystal design with O-ring provide resistance to water and dust.
The glare-free flat crystal face has a scratch-resistant coating.
High sensitivity and quick response because of jeweled bearings.
Standard carbide contact point provide.

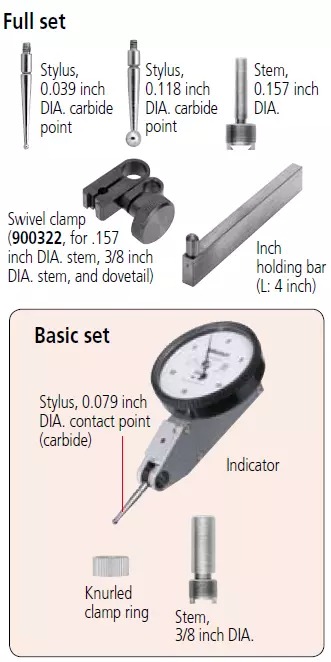

Basic Set Includes: Test Indicator with .079″ Diameter Contact Point, knurled clamp ring, and 3/8″ Dovetail

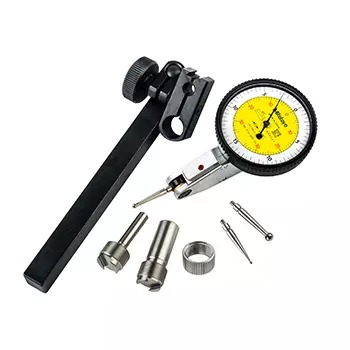

Full Set Includes: Test Indicator with .079″ Diameter Contact Point, .039″ Diameter Contact Point, .118″ Diameter Contact Point, .157″ Diameter Dovetail, Swivel Clamp, 4″ Holding Bar
| Weight | 0.0450 kg |
|---|---|
| barcode | |
| Additional Information | Range: 0.03"/0.7 mm |
