$271.51$246.83 Ex. GST

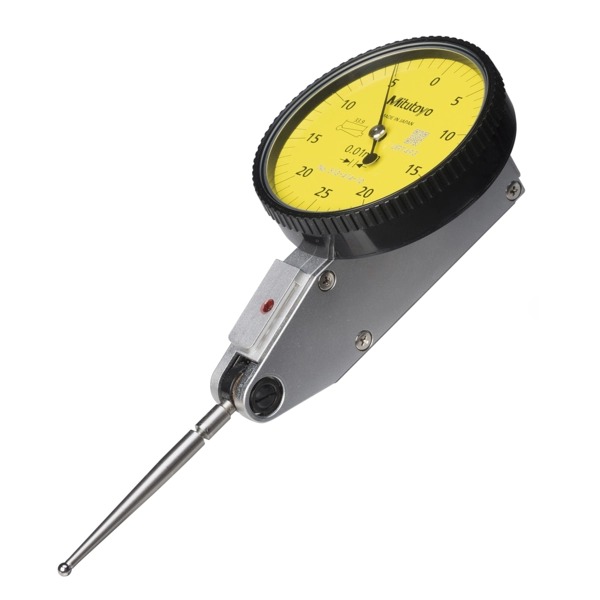

The Mitutoyo 513-414-10E Horizontal Basic Set Dial Test Indicator has the following specifications:
Range: 0.5mm
Graduation: 0.01mm
Accuracy: 10µm

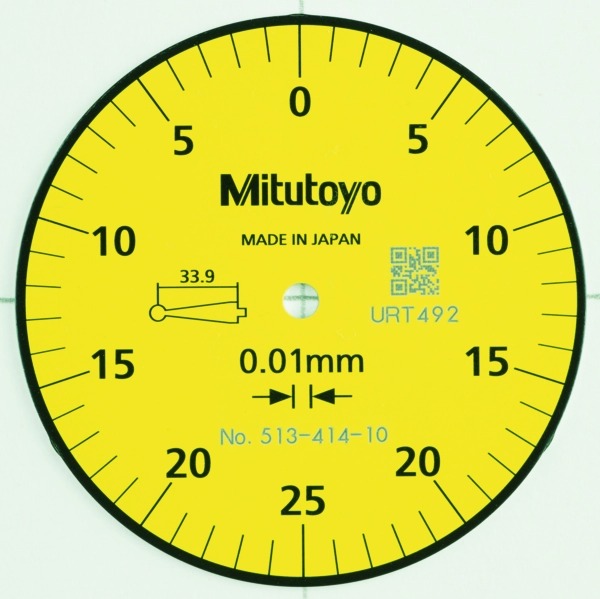

Dial Reading: 0-25-0
Measuring Force: 0.2N or less
Length: 36.8mm
Anti-magnetic
Double Scale Spacing, easy to read
Long Contact Point
Jeweled Bearing
Features:
Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
No-clutch structure for automatic reversal of measuring direction.
One-piece bezel and crystal design with O-ring provide resistance to water and dust.
The glare-free flat crystal face has a scratch-resistant coating.
High sensitivity and quick response because of jeweled bearings.
Standard carbide contact point provide.

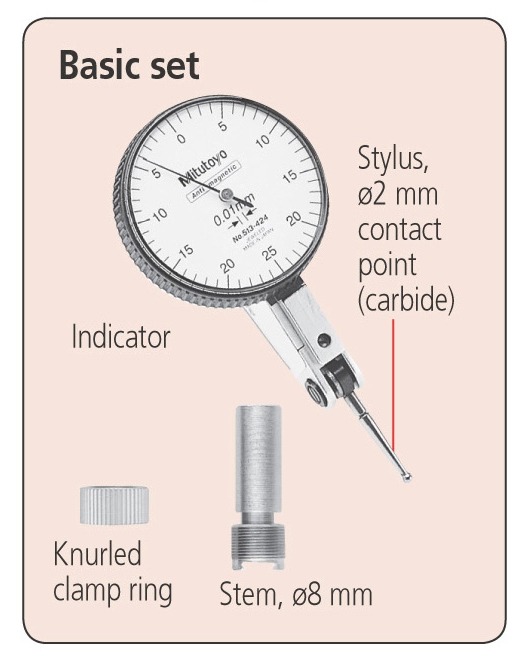

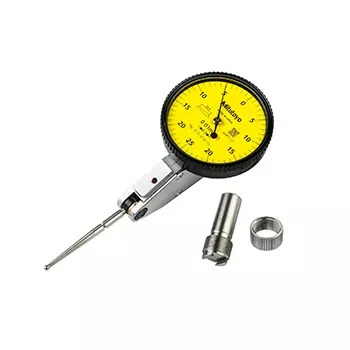

Basic Set includes test indicator with 2mm Contact Point, knurled clamp ring, and dovetail with 8mm Stem
Full Set includes test indicator with 2mm diameter contact point, 1mm dia. carbide contact point, 3mm dia. carbide contact point, Dovetail with 4mm Stem, Swivel Clamp, and 100mm Holding Bar
| Weight | 0.0450 kg |
|---|---|
| barcode | |
| Additional Information | Range: 0.5 mm |
