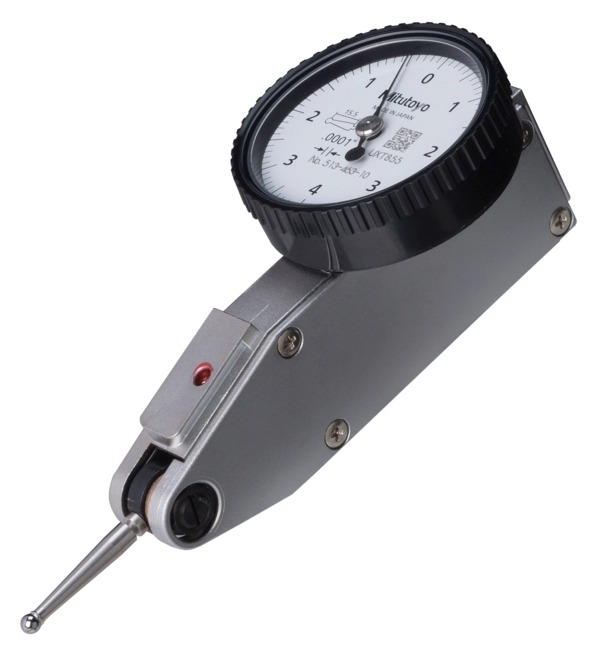

Mitutoyo DIAL TEST INDICATOR 513-463-10E

Description

The Mitutoyo 513-463-10E Horizontal Basic Set Dial Test Indicator has the following specifications:

Range: .008″
Graduation: .0001″
Accuracy: +/- .0001″
Dial reading: 0-4-0
Measuring Force: 0.3N or less
Contact Point Length: 15mm
Anti-Magnet
Jeweled Bearing
Compact Type
Features:

Available in Metric, Inch and Metric/Inch models
Crystal is glare-free with a scratch-resistant coating
O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly

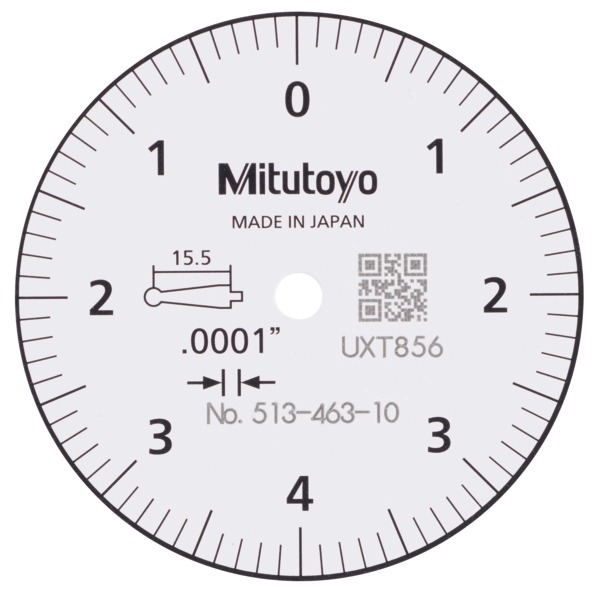

Contact point length is printed on the dial face to avoid accuracy issues
Newly designed contact point holder prevents backlash
Supplied in a fitted plastic case
Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
No-clutch structure for automatic reversal of measuring direction.
One-piece bezel and crystal design with O-ring provide resistance to water and dust.
The glare-free flat crystal face has a scratch-resistant coating.
High sensitivity and quick response because of jeweled bearings.
Standard carbide contact point provide.

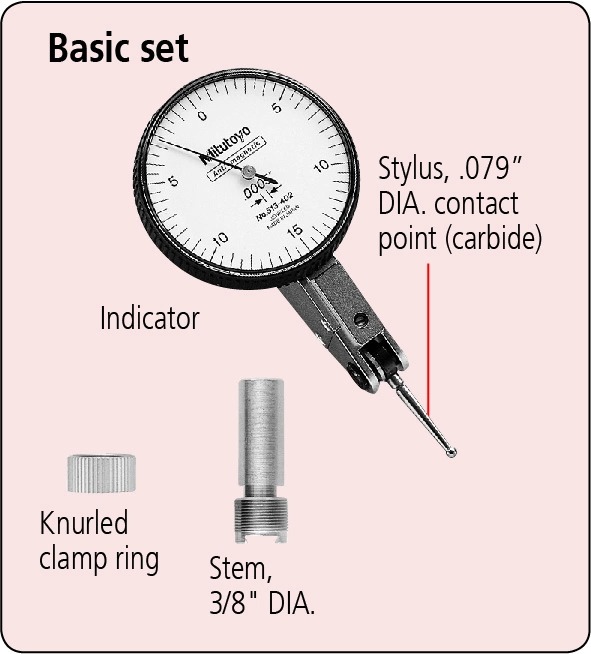

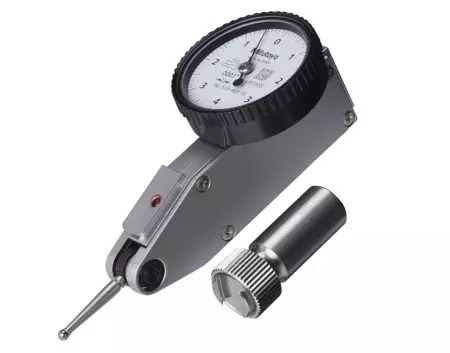

Basic Set Includes: Test Indicator with .079″ Diameter Contact Point, knurled clamp ring, and 3/8″ Dovetail
Full Set Includes: Test Indicator with .079″ Diameter Contact Point, .039″ Diameter Contact Point, .118″ Diameter Contact Point, .157″ Diameter Dovetail, Swivel Clamp, 4″ Holding Bar
