Mitutoyo DIAL TEST INDICATOR 513-503-10T

Description

The Mitutoyo 513-503-10T Pocket Type Dial Test Indicator Full Set – Metric has the following specifications:

Contact point length: 14.7mm
Graduation: 0.002mm
Min Range: 0mm
Max Range: 0.2mm
Dial reading: 0-100-0
Accuracy: ±3µm
Measuring Force: 0.3 or lessN
Features:

Available in Metric and Inch models

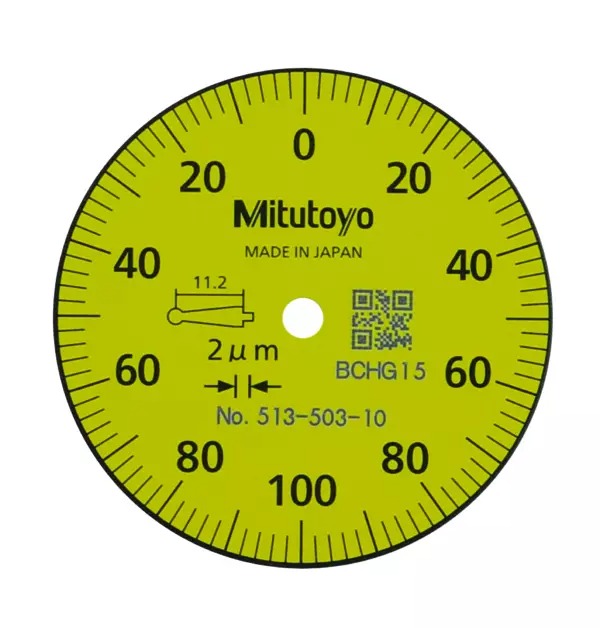

Metric models feature yellow dial face
Inch models feature white dial face
No-clutch structure provides automatic reversal of measuring direction
O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
Contact point is adjustable within 220° of the axis
Newly designed contact point holder prevents backlash
Contact point is carbide tipped for lasting accuracy, durability
Crystal is glare-free with a scratch-resistant coating
Full set includes the indicator and contact points
Supplied in a fitted plastic case
