$362.52$329.56 Ex. GST

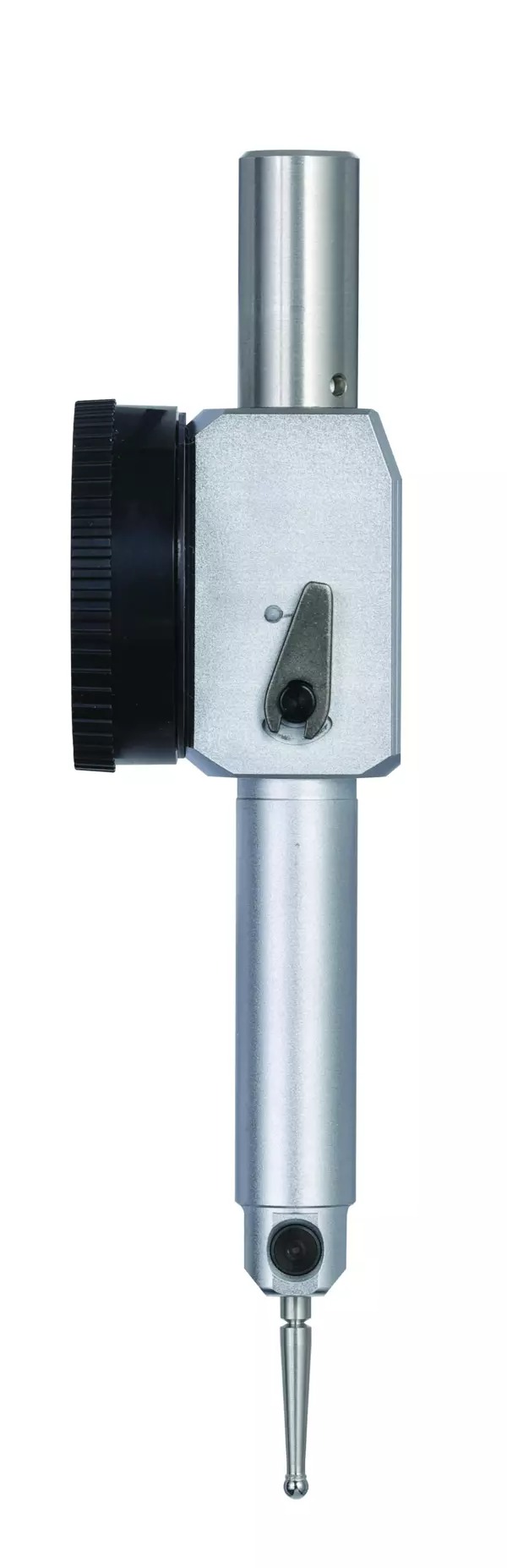

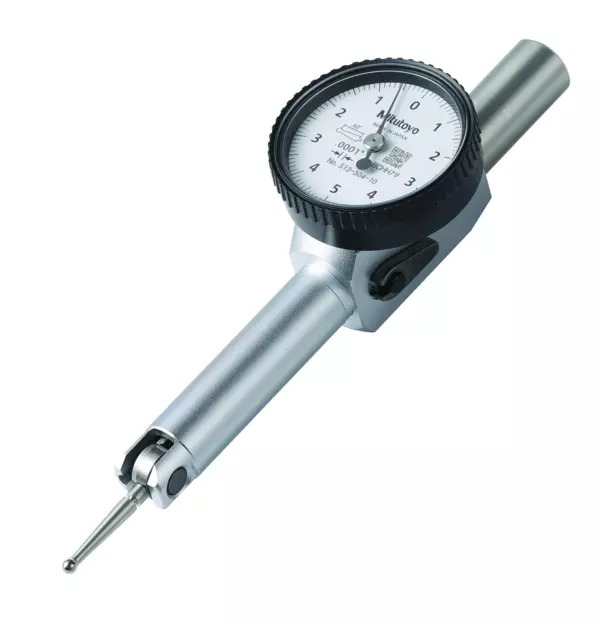

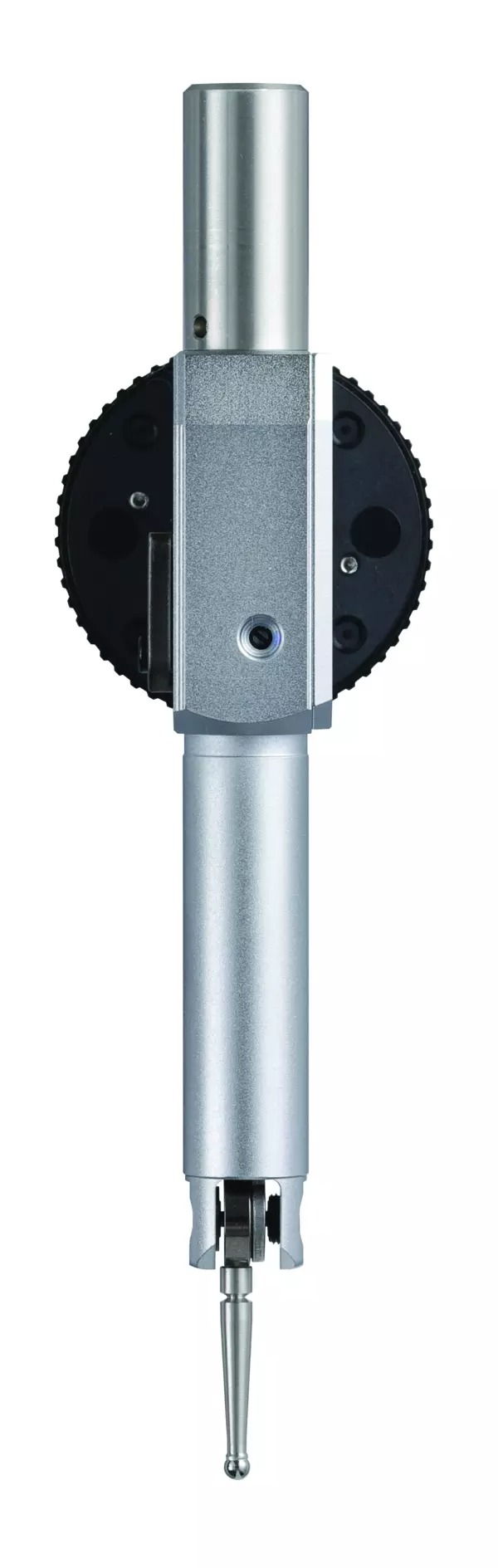

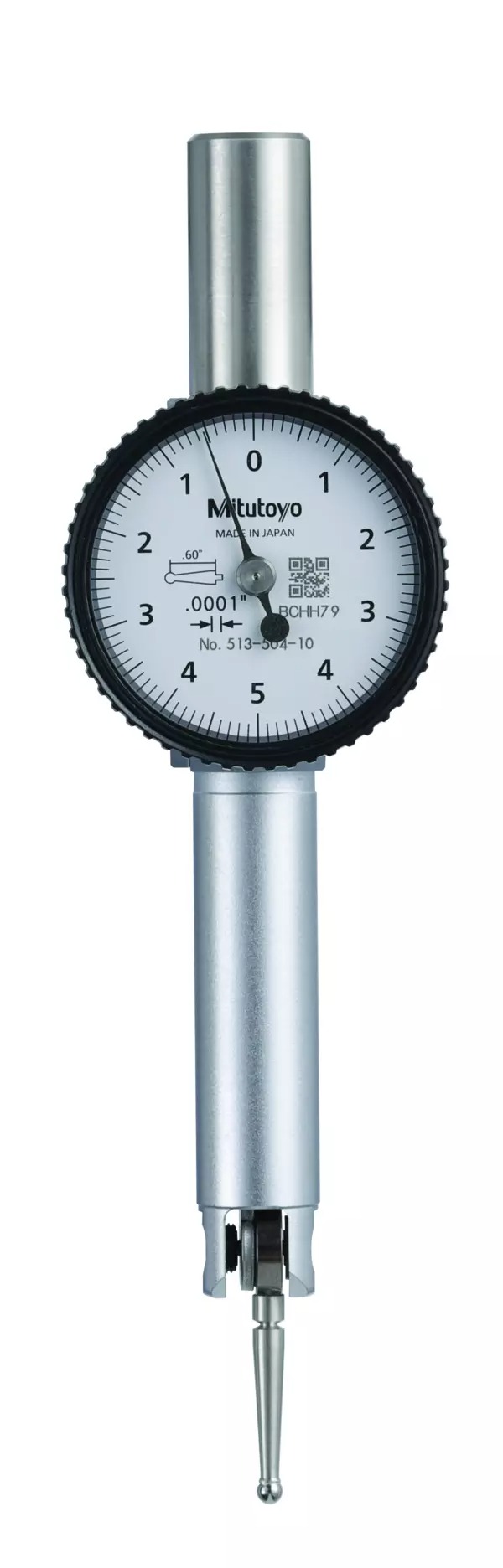

The Mitutoyo 513-504-10T Pocket Type Dial Test Indicator Basic Set has the following specifications:
Contact point length: 18.7mm
Graduation: .0001″”
Min Range: 0″
Max Range: .01″
Dial reading: 0-5-0
Accuracy: ±.0002″
Measuring Force: 0.3 or less N
Features:
Available in Metric and Inch models
Metric models feature yellow dial face

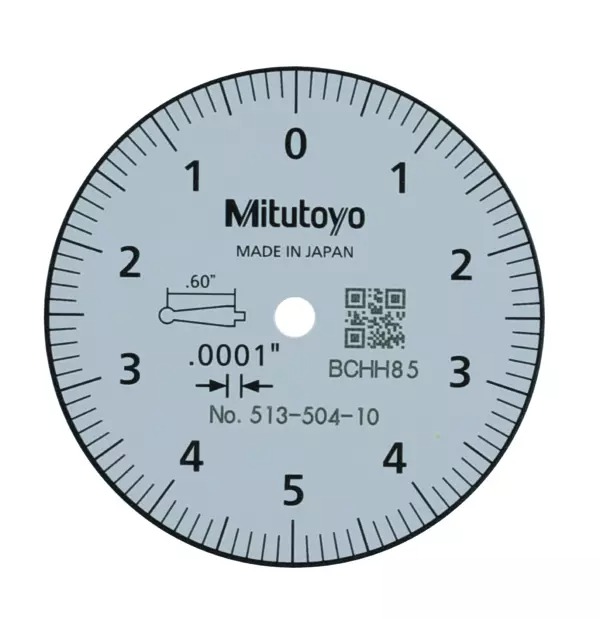

Inch models feature white dial face
No-clutch structure provides automatic reversal of measuring direction
O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
Contact point is adjustable within 220° of the axis
Newly designed contact point holder prevents backlash
Contact point is carbide tipped for lasting accuracy, durability
Crystal is glare-free with a scratch-resistant coating
Full set includes the indicator and contact points
Supplied in a fitted plastic case
| barcode | |
|---|---|
| Additional Information | Model: Full Set |
