$287.21$261.10 Ex. GST

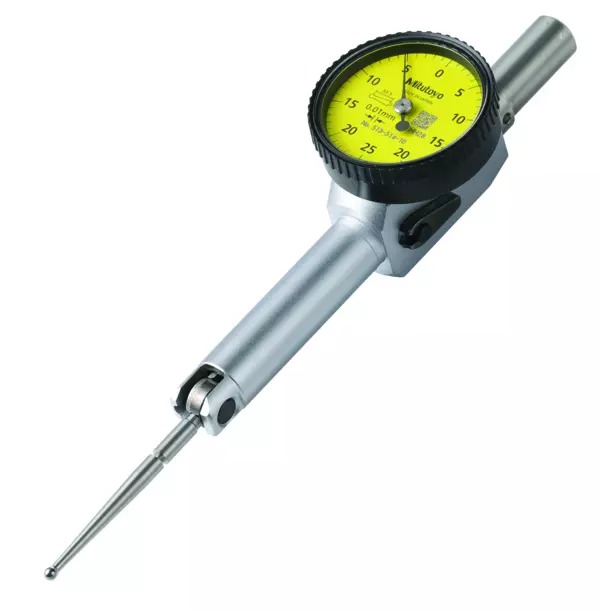

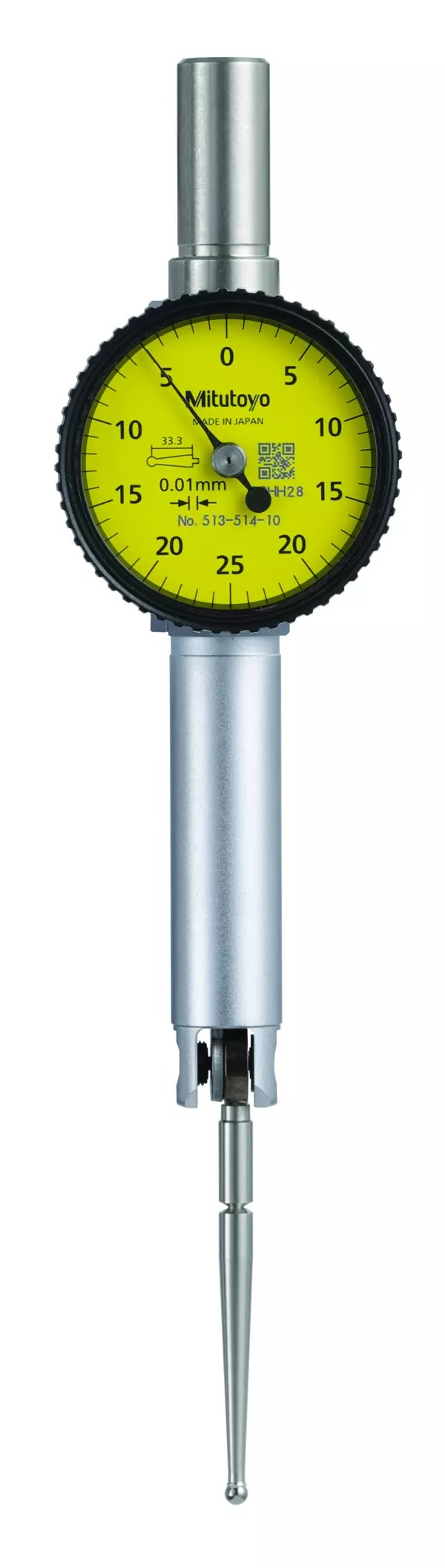

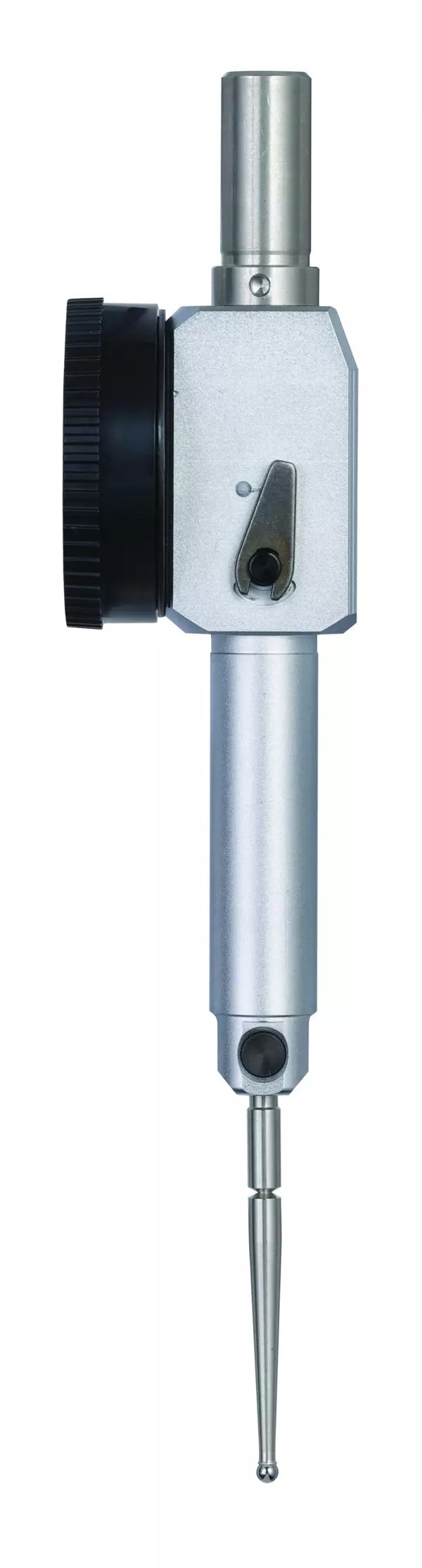

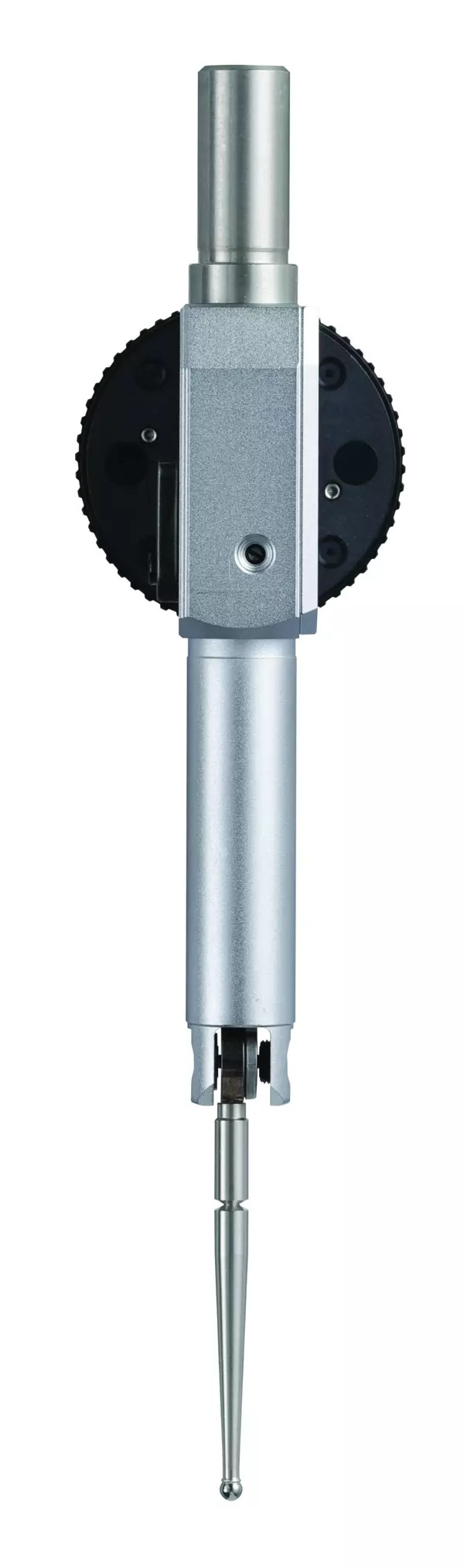

The Mitutoyo 513-514-10E Pocket Type Dial Test Indicator Basic Set – Metric has the following specifications:
Contact point length: 36.8mm
Graduation: 0.01mm
Min Range: 0mm
Max Range: 0.5mm
Dial reading: 0-25-0
Accuracy: ±10µm
Measuring Force: 0.3 or lessN
Features:
Available in Metric and Inch models

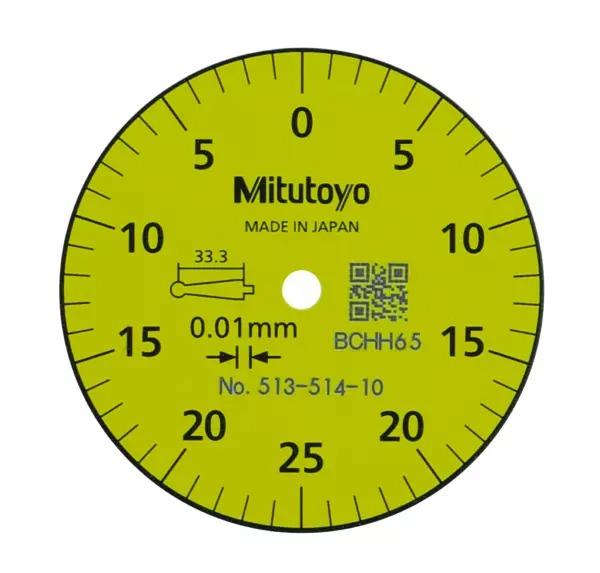

Metric models feature yellow dial face
Inch models feature white dial face
No-clutch structure provides automatic reversal of measuring direction
O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
Contact point is adjustable within 220° of the axis
Newly designed contact point holder prevents backlash
Contact point is carbide tipped for lasting accuracy, durability
Crystal is glare-free with a scratch-resistant coating
Full set includes the indicator and contact points
Supplied in a fitted plastic case
| barcode | |
|---|---|
| Additional Information | Brand: Mitutoyo |
