Mitutoyo DIAL THICKNESS GAUGE 7315A

Product Code: 7315A

$223.63$203.30 Ex. GST

Product Code: 7315A SKU 7315A Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

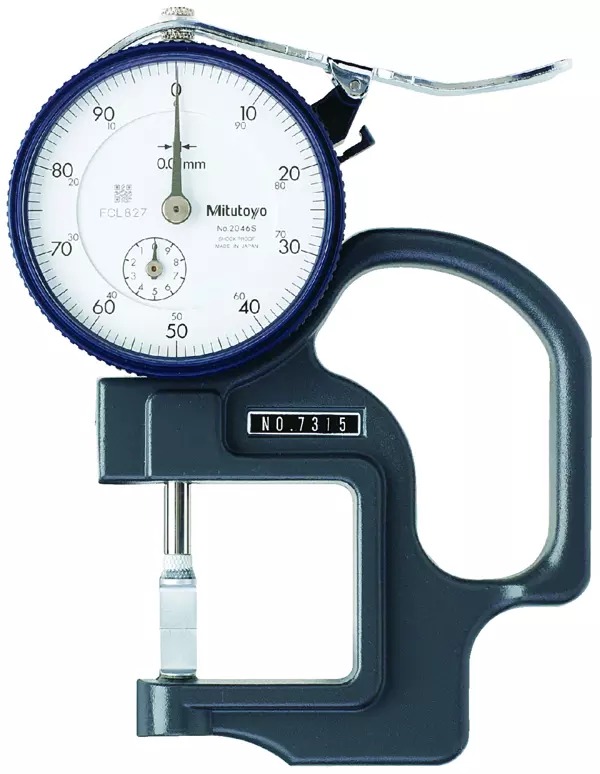

This Mitutoyo 7315 Series 547 Blade Anvil Dial Groove Thickness Gauge is great for accurate measurements thanks to its blade anvil. The gauge covers a thickness range of 0 to 10 mm and uses <1.4 N of force.

Features:
Ideal for taking a wide range of groove thickness measurements
Features a blade anvil for durability
Measures a range of 0 to 10 mm with <1.4 N of force

Additional information

Weight 0.2200 kg
barcode
Additional Information

Inch-Metric: Metric
Functions: Knife-edge contact point
Delivered: In a box with spindle lifting lever 21AZB149
Range: 0 – 10 mm
Graduation: 0.01 mm
Parallelism: 5 µm
Indicator No.: 2,046AB
Max. measuring depth: 30 mm
Measuring force: ≤ 1.4 N
Mass: 220 g
Contact point: Thread M 2.5 x 0.45 mm
Type: Knife-edge contact point

Brand

Mitutoyo
