Mitutoyo DIAL THICKNESS GAUGE 7321A

Product Code: 7321A

$249.61$226.92 Ex. GST

Product Code: 7321A SKU 7321A Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

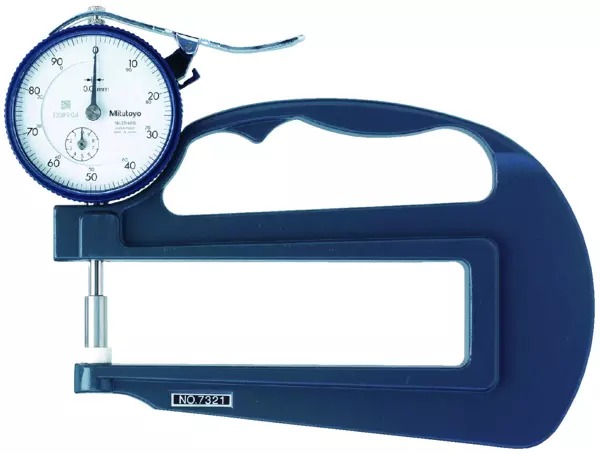

With this Mitutoyo 7321 Series 7 Deep Throat Flat Anvil Dial Thickness Gauge, you can take precise measurements. The deep-throat design accommodates larger objects, while the ceramic anvil and spindle offers reliable strength.

Features:
Great for taking a variety of measurements
Built with a grip handle, thumb trigger and spring-loaded spindle
Offers a deep-throat design
Spindle and anvil are made of ceramic for durability
Measures from 0 to 10 mm with <1.4 N of force

Additional information

Weight 0.3550 kg
barcode
Additional Information

Inch-Metric: Metric
Functions: Large jaw capacity and ceramic disc contact points
Delivered: In a box with spindle lifting lever 21AZB149
Range: 0 – 10 mm
Graduation: 0.01 mm
Parallelism: 5 µm
Indicator No.: 2,046AB
Max. measuring depth: 120 mm
Measuring force: ≤ 1.4 N
Mass: 355 g
Contact point: Thread M 2.5 x 0.45 mm
Type: Large jaw capacity and ceramic disc contact points

Brand

Mitutoyo
