$339.49$308.63 Ex. GST

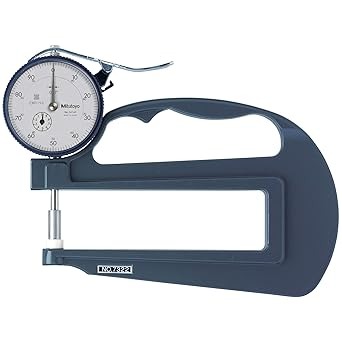

The Mitutoyo 7322S dial thickness gauge is for measuring the thickness of workpieces. This gauge has a measurement range of 0 to 1.0″, a resolution of 0.001″, and an accuracy of + or – 0.002″. The dial indicator face is white for precise and readable measurements in inches. The anvil is flat and the contact point and anvil are ceramic for corrosion-resistance. This model has a throat of 120mm for measuring items where a greater depth is required. It has a grip handle, thumb trigger, and spring-loaded spindle for taking accurate measurements. It has a measuring force of 2.0 Newtons (N) or less.
SpecificationsAnvil/spindle typeFlat, spring-loaded spindle, ceramicRange0 to 1.0″Graduations0.001″Accuracy+ or – 0.002″FaceDial with white face displays in inchesBody120mm throat depth, grip handle, and thumb triggerMeasuring forceLess than 2.0NShipping weight1.05lb.
Thickness gauge measures 0 to 1.0″ with 0.001″ graduations and + or – 0.002″ accuracy, for measuring the thickness of workpieces
Dial indicator with white face for precise and readable measurements in inches
Contact point and the flat anvil are ceramic for corrosion resistance
Throat of 120mm for measuring the thickness of items where a greater depth is required
Grip handle, thumb trigger, and spring-loaded spindle for accurate measurements
| Weight | 0.0000 kg |
|---|---|
| Dimensions | Length 19.99cm x Width 10.01cm x Depth 5cm |
| barcode | |
| Additional Information | Type: Dial Thickness Gauges |
