Mitutoyo DIGI THREAD MIC 326-351-30

Product Code: 326-351-30

$946.44$860.40 Ex. GST

Product Code: 326-351-30 SKU 326-351-30 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

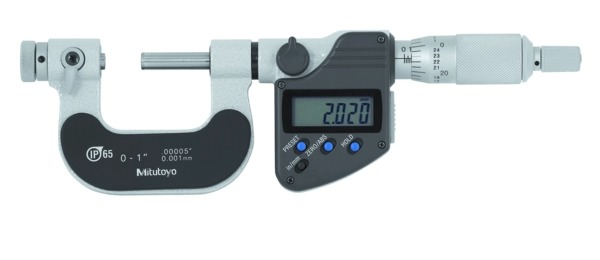

This Digimatic Screw Thread Micrometer should be used with optional, interchangeable, anvils/spindle-tips that allow you to measure a wide range of metric/unified and Whitworth screw-thread pitch diameters.

A metric (unified) 60ยบ setting standard is included with all models except those measuring from 0
IP65 Protected: Waterproof (coolant & dust resistant)

Additional information

Weight 0.3500 kg
barcode
Additional Information

Digital/Analog: Digital
Delivered: Including box, spanner, 1 SR44 battery, without interchangeable tips
Inch-Metric: Inch/Metric
Range: 0 – 1"
Digital step: 0.00005"/0.001 mm
Spindle feed error: 0.00015 inch
Display: LCD, character height 7.5 mm
Measuring face: Interchangeable anvil/spindle inserts (optional)
Measuring spindle: With spindle lock, รธ6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, รธ18 mm
Measuring force: 5 – 10 N
Power supply: 1 battery SR-44
Battery life: Approx. 2.4 years
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Low voltage alarm: Yes
Function lock: Yes
HOLD: Yes
2 x PRESET: Yes
Mass: 350 g

Brand

Mitutoyo
