Mitutoyo DIGI TUBE MICROMETER 395-353-30

Description

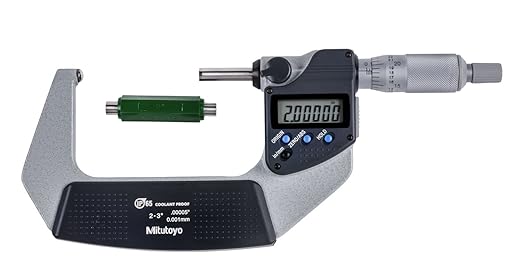

The Mitutoyo 395-353-30 IP65 Electronic Spherical Face Micrometer has the following specifications:
Range: 2-3″/50.8-76.2mm
Resolution: .00005″/.001mm
Accuracy: +/- .0001″
Mass(g): 470
Type: Spherical Anvil / Flat Spindle
Remarks: D = .75″
The Mitutoyo digimatic digital spherical micrometer is available with either a spherical face on the anvil and a flat spindle measuring surface or with spherical measuring surfaces on the anvil and spindle. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error. The 395-353-30 IP65 Electronic Spherical Face Micrometer has a resolution of 0.00005″/.001mm and protected to IP65 standards.

Features:
Available in Metric and Inch/Metric models
Available with spherical anvil and flat spindle or with spherical anvil and spherical spindle

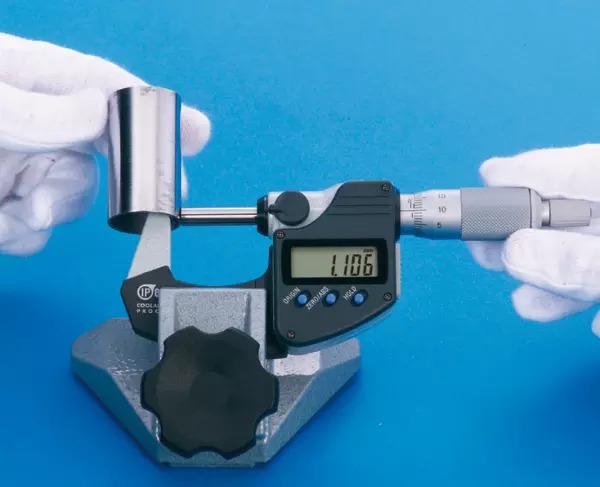

Designed to measure the wall thickness of various tubing, curved parts and pipe wall thickness
Spherical measuring faces are 0.59” in diameter and carbide-tipped for durability
IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for most shop floor environments
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Includes a standard bar except for 0-1” and 0-25mm models
Supplied in fitted plastic case

Abbreviations below:
S/F = Spherical Anvil/Flat Spindle
S/S = Spherical Anvil/Spherical Spindle
