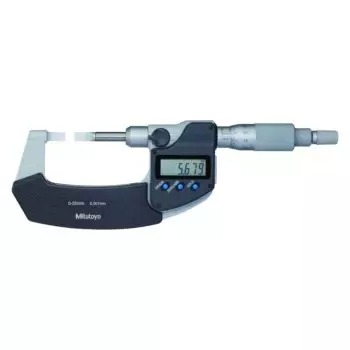

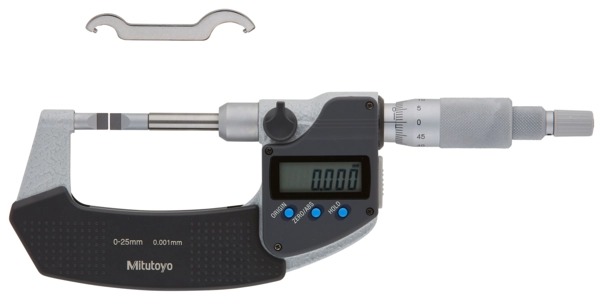

Mitutoyo DIGIMATIC BLADE MICROMETER 422-271-30

Description

The Mitutoyo 422-271-30 IP54 Electronic Blade Micrometer has the following specifications:

Range: 0-25mm
Accuracy: +/- .003mm
Resolution: 0.001mm
Remarks: Type D
Mass(g): 365
Features:

Available in Metric and Inch/Metric models
Ratchet thimble allows for easy single-hand use when measuring objects
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Elimination of overspeed errors provides for more reliable and repeatable measurements
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Knurled friction thimbles provide quick adjustments even when wearing gloves
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Supplied in fitted plastic case
IP54 protection resists debris, dust and water
To watch a video on the Mitutoyo 422-271-30 Mitutoyo IP54 Electronic Blade Micrometer: Click Here

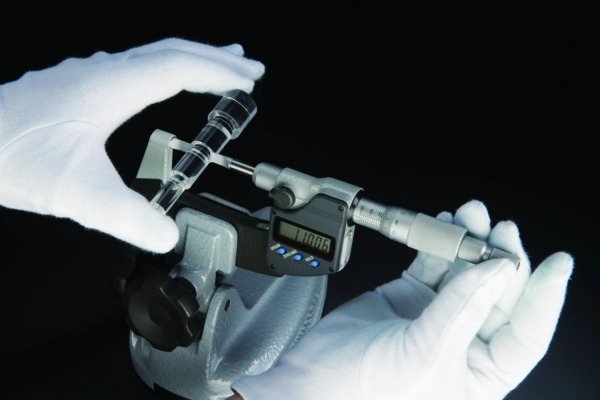

The Digimatic non-rotating spindle type blade micrometer quickly measures grooves, keyways and hard-to-reach areas with high accuracy. The Mitutoyo Digimatic blade micrometer utilizes a blade anvil and spindle for measuring difficult pieces such as groove diameters of shafts and keyways. The non-rotating spindle reduces torsion on softer parts being measured and prevents workpiece deformation and wear. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Readings are displayed on an easy-to-read LCD readout.
