Mitutoyo DIGIMATIC BORE GAUGE 511-925-10

Product Code: 511-925-10

$1,974.84$1,795.31 Ex. GST

Product Code: 511-925-10 SKU 511-925-10 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

This is a wide range application set of Bore Gauges that automatically self-centres via a centring bridge and offers you the following benefits:
Carbide for the contact point ensuring high durability and wear resistance
It reduces the influence of heat from the operator’s hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.

Additional information

barcode
Additional Information

Inch-Metric: Metric
Range: 18 – 150 mm
Graduation: 0.001 mm
Measuring depth: 100/150 mm

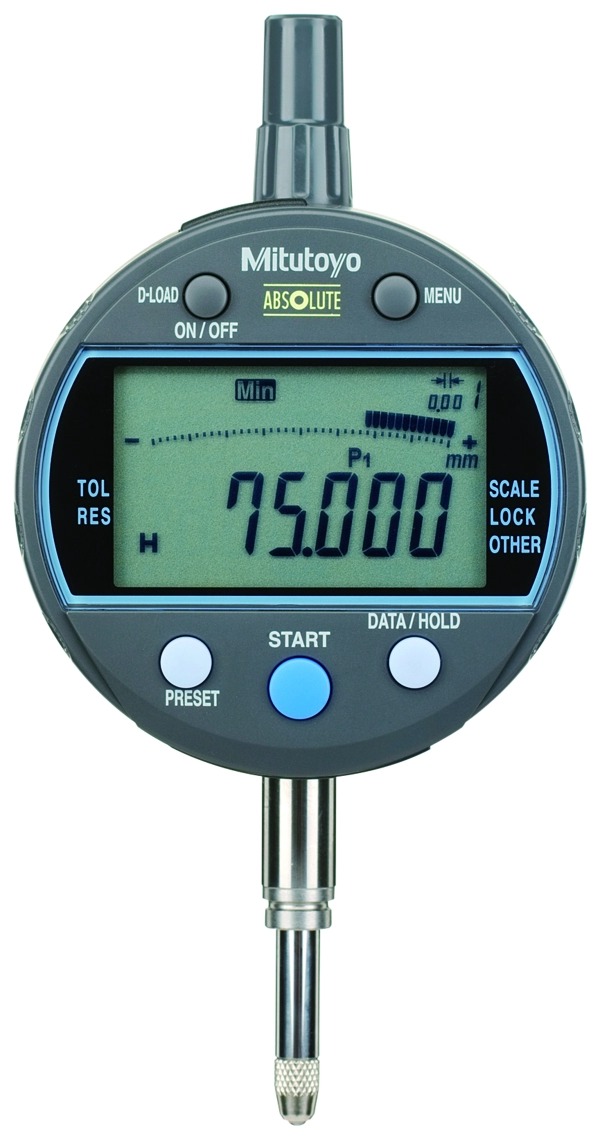

No. Dial Indicator: 543-310B-10
Accuracy: 2 µm
Repeatability: 0.5 µm
Digital/Analog: Analog

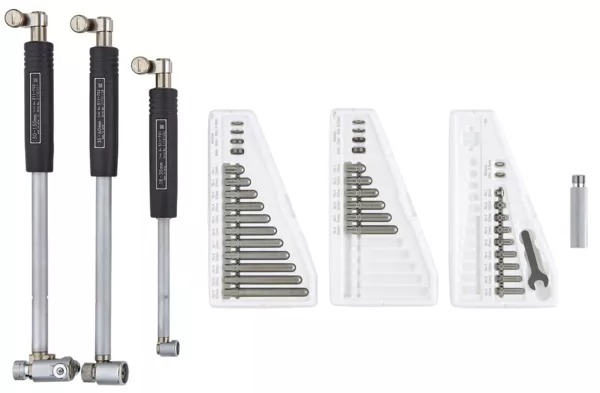

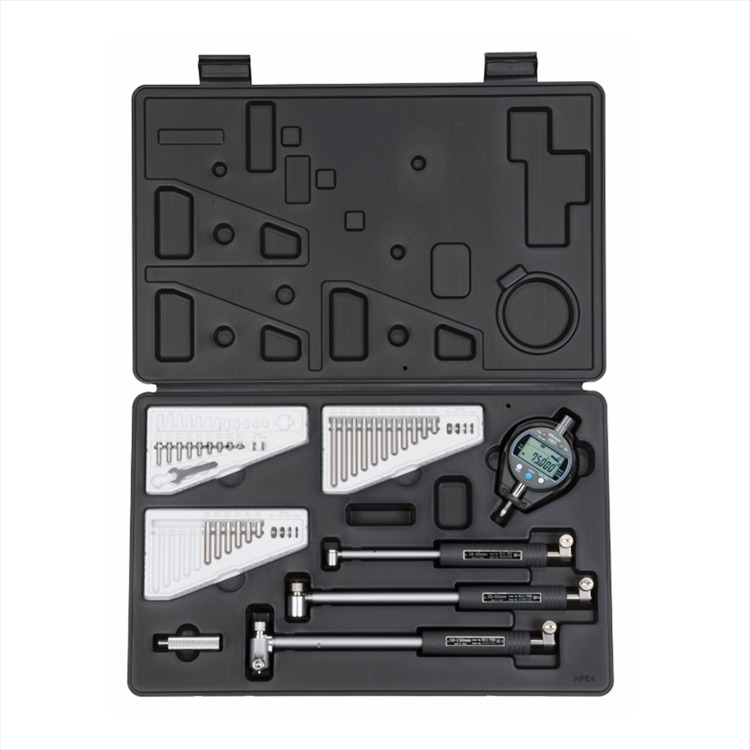

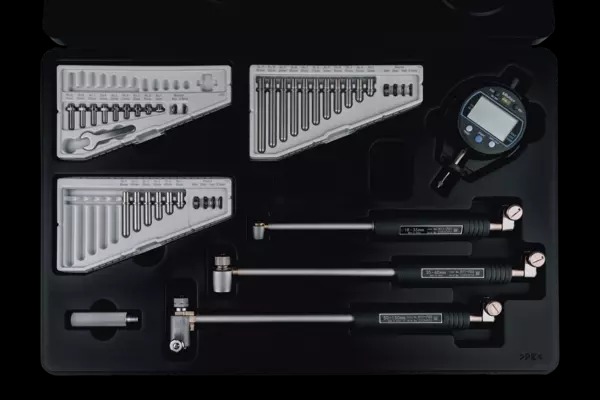

Delivered: In a box with bore gauge 511-701 / 511-702 / 511-703, digital indicator 543-310B-10, plastic cover for indicator 21DZA000, 26 anvils, 10 washers, 1 sub-anvil, spanner 102148

Brand

Mitutoyo
