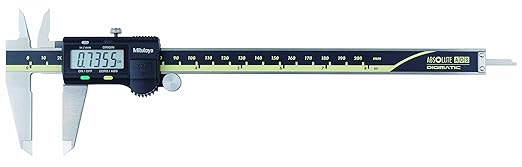

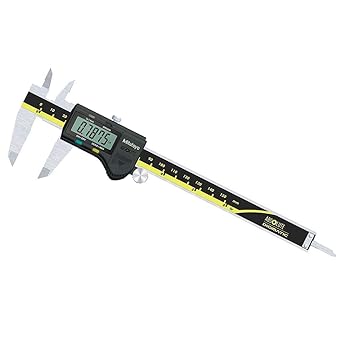

Mitutoyo DIGIMATIC CALIPER 200/8″ 500-172-30

Product Code: 500-172-30

$458.79$417.08 Ex. GST

Product Code: 500-172-30 SKU 500-172-30 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Mitutoyo 500-172-30 AOS Absolute Digimatic Caliper has a measuring range of 8″/ 200mm with .0005″/ 0.01mm resolution. Includes SPC data output. Equipped with the exclusive AOS sensor technology which is a patented Advanced Onsite Sensor that offers improved measurement dependability by increasing resistance to harsh workshop conditions. Thiscaliper features electromagnetic inductive (AOS) sensor providing improved resistance to environmental conditions such as dirt, oil and water that can cause false readings, an increased battery life of 3.5 years under normal operation and Absolute (ABS) sensor that eliminates the necessity of setting the reference when the caliper is powered on. It is also fully compatible with existing Mitutoyo digimatic peripherals (SPC cables, U-Wave wireless transmitters, etc.)and are priced the same as the latest 500 Series ABS Caliper models.

Additional information

Weight 0.1999 kg
Dimensions Length 3.3cm x Width 14.48cm x Depth 33.27cm
barcode
Additional Information

Delivered: Including box, SR44 battery, certificate of inspection
Range: 0 – 8 in
Depth Bar: Flat
Thumb Roller: Yes
Data Output: Yes
Max. Permissible Error E MPE: ±0.001 in
Max. Permissible Error S MPE: ±0.002 in
Digital Step: 0.0005 in / 0.01 mm
Max. Response Speed: Unlimited
Display: LCD, character height 9 mm (150, 200 mm), 11 mm (300 mm)
Delivered: In a case, including 1 SR-44 battery
Origin (ABS-Zero): Yes
ON/OFF: Yes
ABS / INC (INC ZERO): Yes
Low Voltage Alarm: Yes
Battery Life: Approx. 5 years under normal use
Mass: 194 g

Brand

Mitutoyo
