$1,275.71$1,159.74 Ex. GST
Features:
Large and clear LCD readout.
The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
Data Hold Unit (959143) is optional.

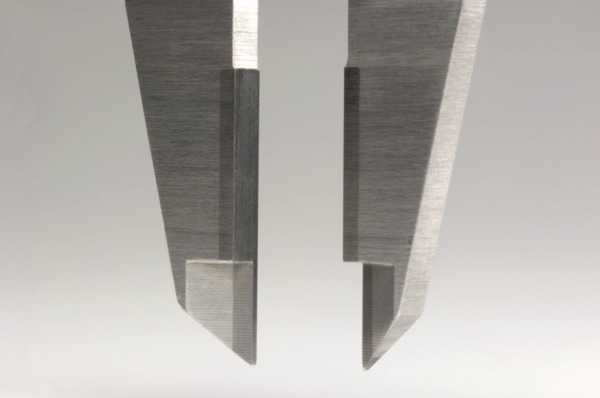

Carbide-tipped jaw type calipers are also available.
With thumb roller. Except 500-500-10, 500-501-10,500-502-10.
Supplied in fitted plastic case. Except 1000mm / 40” supplied in wooden case.
Technical Data
Accuracy: Refer to the list of Specifications
Resolution: 0.01mm or .0005″/0.01mm
Repeatability: 0.01mm / .0005”
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type
Linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
Function
Origin-set, Zero-setting, Data output, inch/mm conversion (inch/mm models ONLY)
Alarm: Low voltage, Counting value composition error
| Weight | 0.3500 kg |
|---|---|
| barcode | |
| Additional Information | Delivered: Including box, SR44 battery, certificate of inspection |
