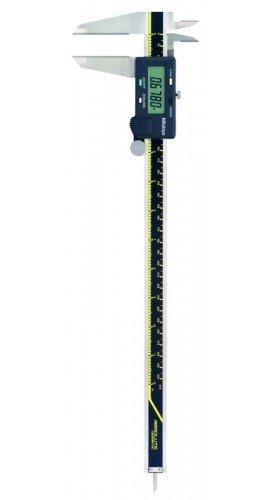

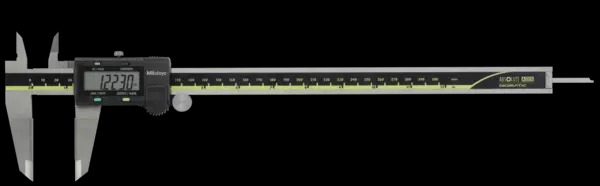

Mitutoyo DIGIMATIC CALIPER 500-168-30

Description

The Mitutoyo 500-168-30 ABSOLUTE Digimatic Caliper has the following specifications:

Range: 0-12″/300mm
Resolution: .0005″/0.01mm
Repeatability: .0005″/.01mm
Accuracy: +/- .0015″

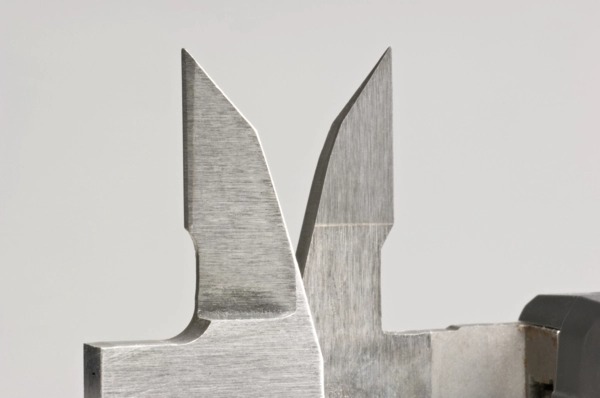

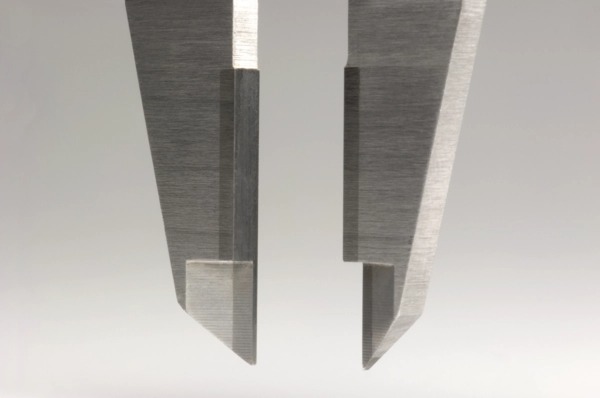

Remarks: Carbide Tipped ID & OD Jaws
SPC Output: Yes
We are pleased to announce the new Mitutoyo ABS Digimatic Caliper line with exclusive AOS sensor technology. The patented Advanced Onsite Sensor (AOS) offers improved measurement dependability by increasing resistance to harsh workshop conditions.Mitutoyo’s absolute Digimatic caliper sis the next generation of electronic calipers.The caliper keeps track of of the origin point once it is set.When turned on, the large LCD displays the actual slider position and is ready to being measuring with.With the absolute encoder technology, there is no need for users to continually have to set zero on the caliper.With the new Mitutoyo absolute digimatic calipers, there is no more concern for over-speed errors as some have seen with lesser quality electronic calipers.The high quality guide surface finish ensures for smooth slider movement along the scale.

Features:

Available in Inch/Metric or Metric Only models
Available with or without SPC output capabilities
Carbide-tipped jaws are available
Thumb roller included only on calipers up to and including 12″/300mm models
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
Stainless steel construction protects caliper components and ensures accurate performance for longer duration
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero-Setting, Data Output and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, counting value composition error
Supplied in a fitted plastic case (40″/1000mm model is supplied in a wooden case)
