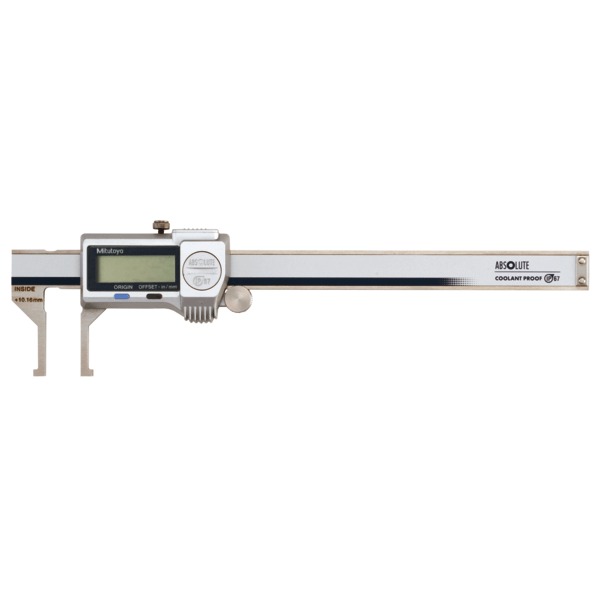

Mitutoyo Digimatic Caliper Inside .4 573-745-20

Product Code: 573-745-20

$1,055.74$959.76 Ex. GST

Product Code: 573-745-20 SKU 573-745-20 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

The Mitutoyo 573-745-20 ABSOLUTE Groove Type Inside Caliper has the following specifications:

Range: .400-6.00″/10-150mm
Resolution: .0005″/.01mm
Accuracy: +/- 0.002″
Mass(g): 147
Remarks: Inside Groove Type
Features:

Specially designed for inside measurements in hard-to-reach places
With SPC data output. (Series 573)
Supplied in fitted plastic case. 18″/450mm and 24″/600mm supplied in wooden case.
Technical Data:

Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
Digital models Analog models
Function of Digital Model

Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

Additional information

Weight 0.1470 kg
barcode
Additional Information

Range: 0.4 to 6" / 10 to 150 mm
Accuracy: ±0.002"
Thumb Roller: Yes
Mass: 147 g
Max. Response Speed: Unlimited
Battery Life: Approx. 5 years
Display: LCD, character height 9 mm
ORIGIN (ABS-Zero): Yes
Auto Power OFF After 20 min. Non Use: Yes
Data Output: Yes
Inch-Metric: Inch/Metric
