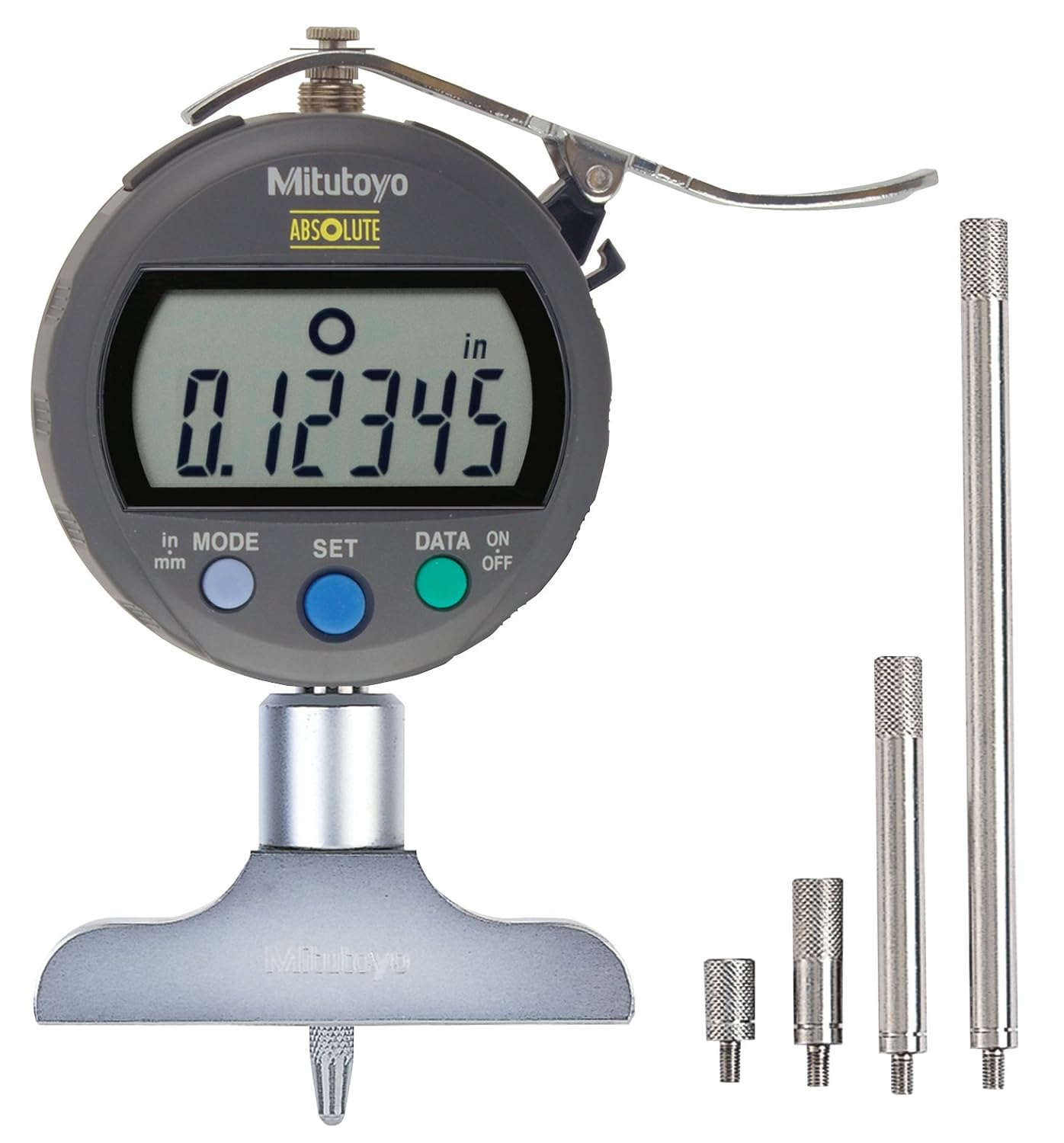

Mitutoyo DIGIMATIC DEPTH GAUGE 547-257S

Description

FEATURES
ABSOLUTE Digimatic Depth Gage can keep track of the origin point once set for the entire life of the battery.
Wide probing range is available with the supplied extension rod.
Bottom surface of the base is hardened, ground and lapped for highest degree of flatness.
With SPC data output.
Technical Data
Accuracy: Refer to the list of specifications.(excluding quantizing error for digital models)
Resolution*: 0.001mm, 0.01mm, .00005″/0.001mm or .0005”/0.01mm
Flatness of base face: 5µm
Measuring force: 1.4N, 1.5N
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use

Function
Origin-set, Zero-setting,Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
