Mitutoyo DIGIMATIC DEPTH MICROMETER 329-251-30

Description

Features:
Available in Metric and Inch/Metric models
Available in two different ranges: 0-6″/150mm and 0-12″/300mm

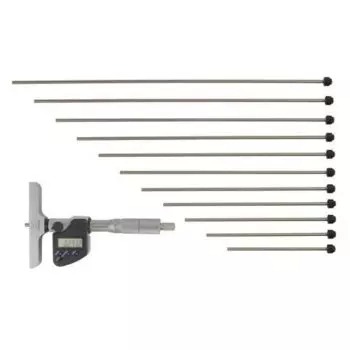

Smaller range models include 6 interchangeable rods
Larger range models include 12 interchangeable rods
Rod length can be adjusted in 1″/25mm increments
Rod diameters are 4mm
Measuring rod clamps provide added measurement stability
SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
Functions include Origin Set, Zero Setting, Data Hold, Data Output, Function Lock, 2 Presets and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Supplied with a fitted plastic case

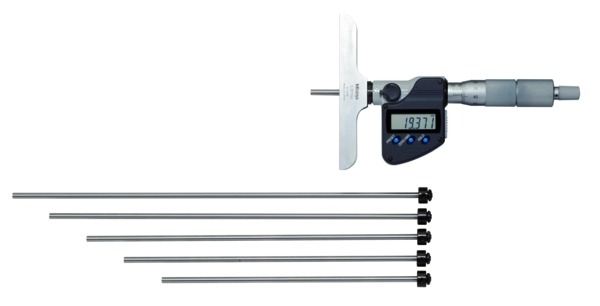

The Mitutoyo Digimatic depth micrometer with interchangeable rods measures a wide range of depths with high accuracy. Measurements are displayed on a digital LCD readout with SPC output for easy automatic recording. The Mitutoyo digital interchangeable rod type depth micrometer offers great versatility for measuring a range of depths with the included extension rods. The 329-251-30 depth micrometer’s rod contact measuring points are lapped and carbide tipped for incredible flatness and better precision. The ratchet stop mechanism provides uniform pressure for precise, repeatable measurements. The Mitutoyo 329 series of interchangeable depth micrometers allow users to take a wide variety of depth measurements and are offered in different ranges, graduations and base lengths. The interchangeable depth micrometers easy to use as well as switch out the different measuring rods depending on the depth you require for a specific application. Each time an interchangeable depth rod is switched out on the gage, the depth micrometer must be set again to a master. Gage blocks are most commonly used to set the Mitutoyo interchangeable depth micrometers and we are happy to assist you in finding a master for your depth gage if needed.
