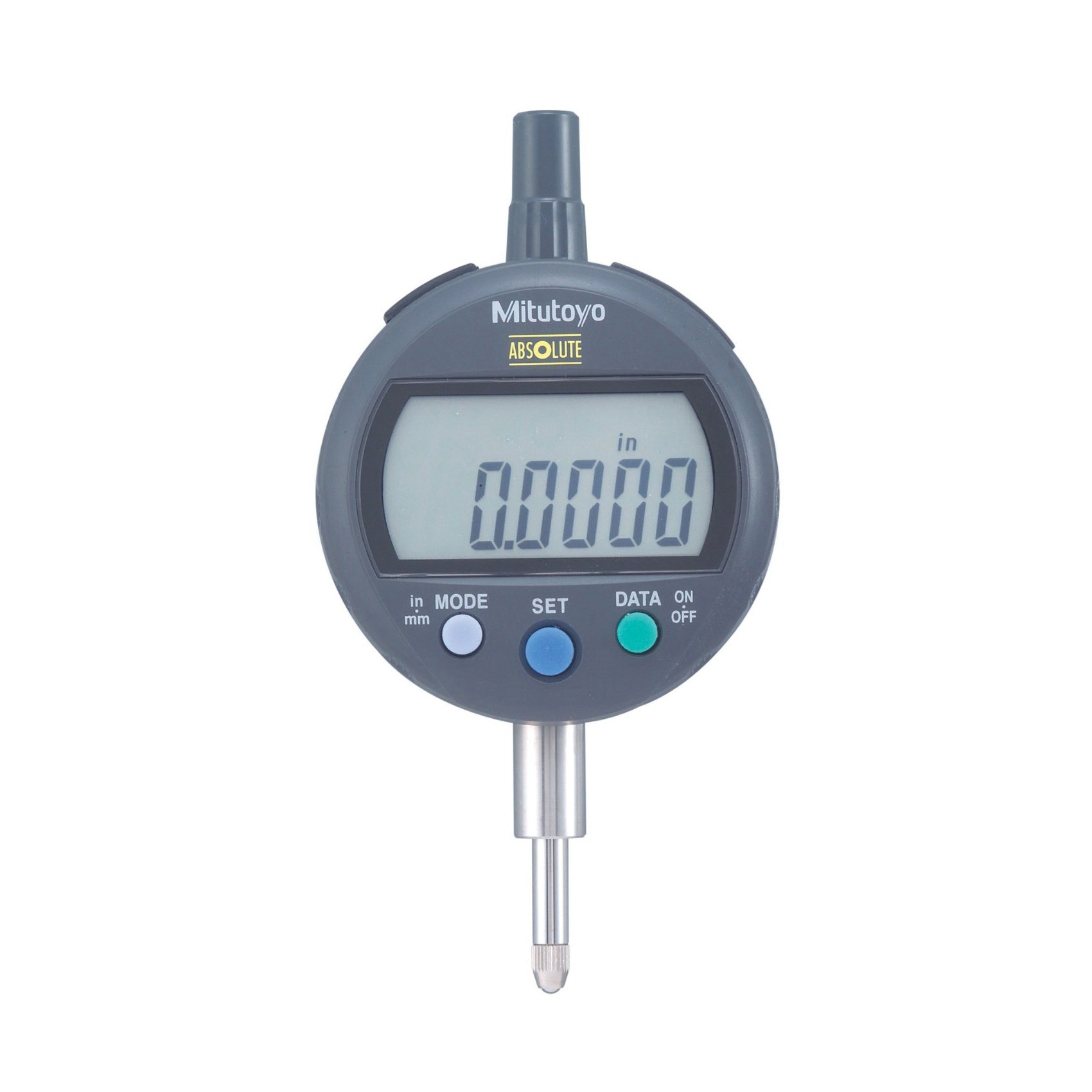

Mitutoyo Digimatic Dial Indicator 543-402

Description

Mitutoyo 543-402 IDC Absolute Digimatic Indicator has a Lug Back, 3/8″ Stem diameter and .5″/12.7mm Measuring Range with a .0005″/0.01mm Resolution and a Measuring Force of 0.9N or Less. The face can be rotated 330 degrees to allow for easy reading and includes SPC data output with IP42 Rated Protection. This is a standard, compact type with a large, easy-to-read, LCD Screen. The GO/+-NG judgement can be performed by setting upper and lower tolerance limits. The judgement result can be displayed in full-size characteristics. The positive/negative count resulting from the spindle’s up/down movement can be toggled. Due to the Absolute linear encoder technology, the spindle always displays the absolute position from the origin at power-on. Over-speed errors are eliminated because of the unlimited response speed.
