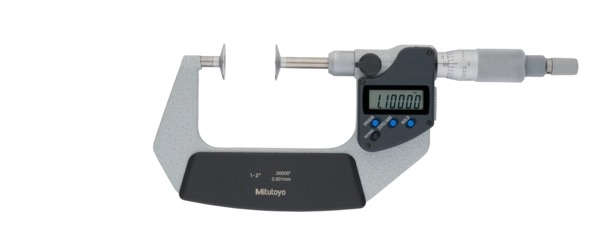

Mitutoyo DIGIMATIC DISC MICROMETER 369-351-30

Description

The Mitutoyo 369-351-30 electronic disk micrometer with non-rotating spindle has the following specifications:

Range: 1-2″/25.4-50.8mm
Resolution: .00005″/.001mm
Accuracy: +/- .0002″
Spindle: Non-Rotating
Features:

Available in Metric and Inch/Metric models
Diameter of measuring discs is .787″/20mm
Measuring surfaces are constructed of carbide to reduce wear
Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments

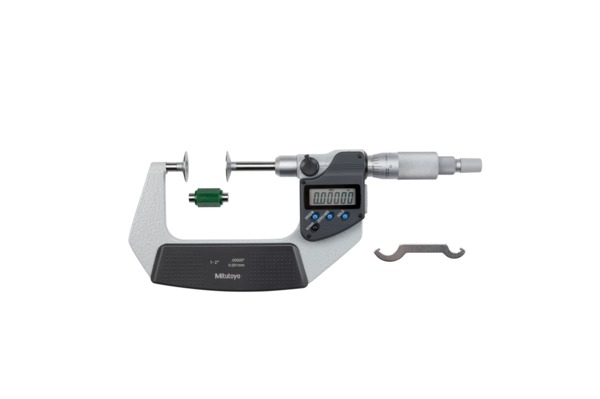

Includes a standard bar except models you can zero out when closing the anvils

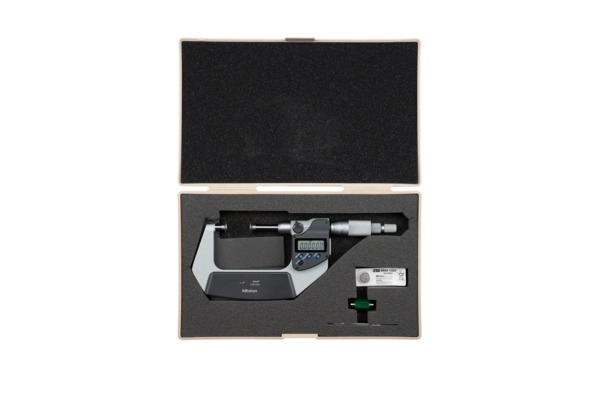

Supplied in fitted plastic case

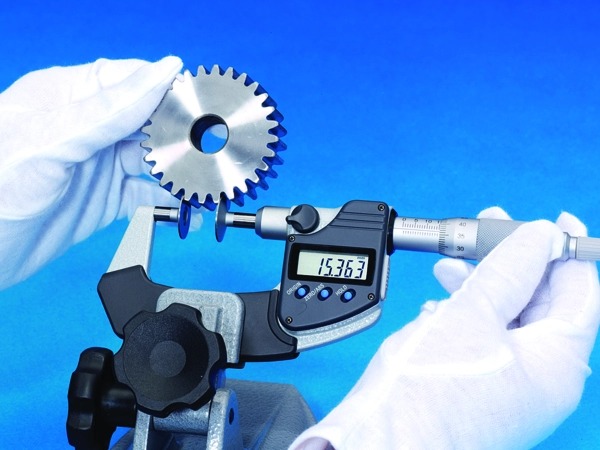

The Mitutoyo 369-351-30 Digimatic non-rotating spindle disc micrometer is designed to measure the root tangent length of spur gears and helical gears with high accuracy. The Mitutoyo digital disc micrometer with non-rotating spindle type uses flat discs and non-rotating spindle made with hardened steel in our own Japanese factory to measure lengths of spur and helical gears. The flatness and thinness of the discs allow for reliable measurements in tight spaces. The non-rotating spindle reduces torque on parts being measured and prevents workpiece deformation and wear. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Readings are displayed on an easy-to-read LCD readout.
