Mitutoyo DIGIMATIC HEIGHT GAUGE 192-615-10

Description

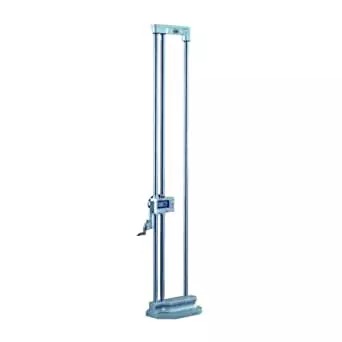

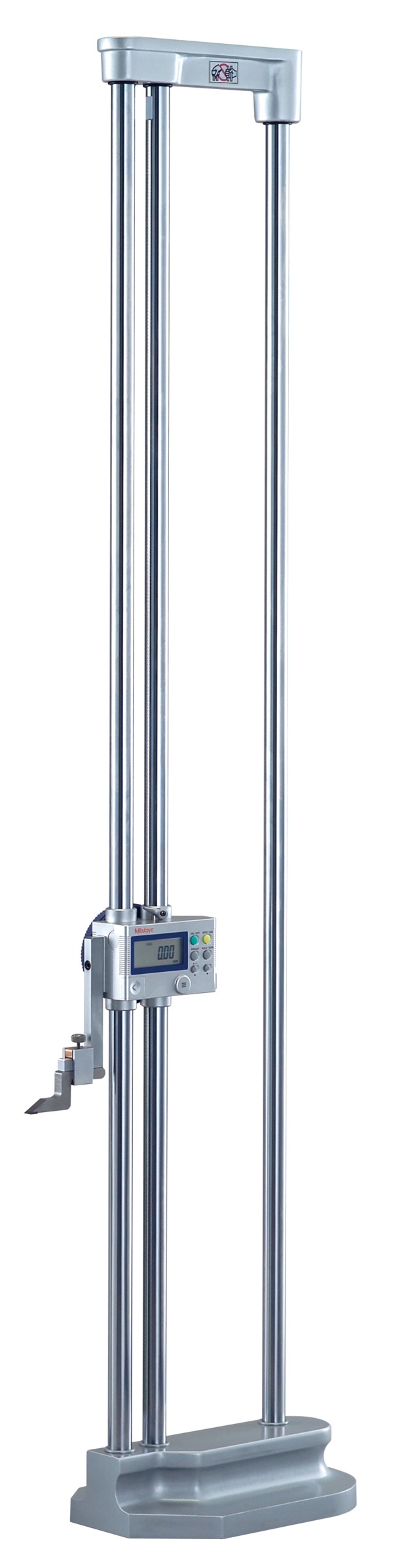

192-615-10 Mitutoyo Digimatic Height Gage – Standard Type with SPC Data Output: 0-1000mm

The Mitutoyo 192-615-10 Standard Type Digimatic Height Gage has the following specifications:

Range: 0-1000mm
Resolution: .005mm or .02mm (Switchable)
Accuracy: +/- .07mm
Mass: 15.7kg
Features:

Available in Metric and Inch/Metric models
Metric models are available in three measurement ranges
Inch/Metric models are available in four measurement ranges
Resolution is switchable between 0.005mm/.0002” and 0.01mm/.0005”

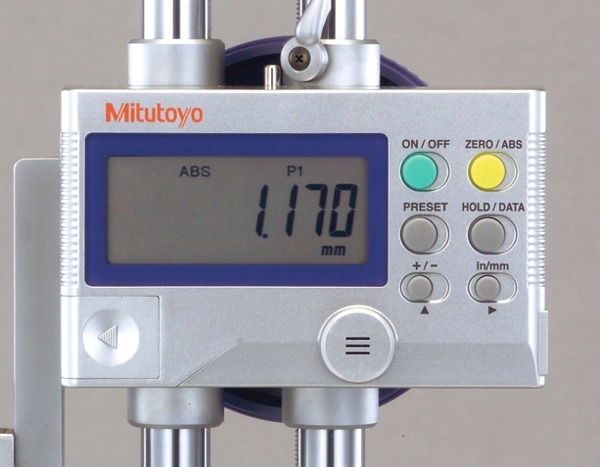

Display features large LCD characters (11mm in height) for easier measurement reading and reduces eye strain
Large function buttons on display are positioned for easy operation
Inclined slider handle improves slider ergonomics
Base is shaped to provide a secure grip
Coarse/fine feeding switch for fast adjustments and precise measurements
Functions include Zero setting, ABS/INC switching, 2 Presets, Probe tip diameter compensation, -/+ switching, Power On/Off, Data hold, Data output, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
The Mitutoyo 192-615-10 Digimatic Height Gage – Standard Type with SPC output achieves highly accurate height measurements with improved ease of operation. Measurements are shown on an easy-to-read LCD display. The Mitutoyo standard type digimatic height gage provides precise measurement in a unit that is easy to use. This height gage has a rigid, double-column structure which ensures high measuring accuracy and repeatability. The included carbide-tipped long scriber is highly durable and provides accurate marks on your workpiece.
