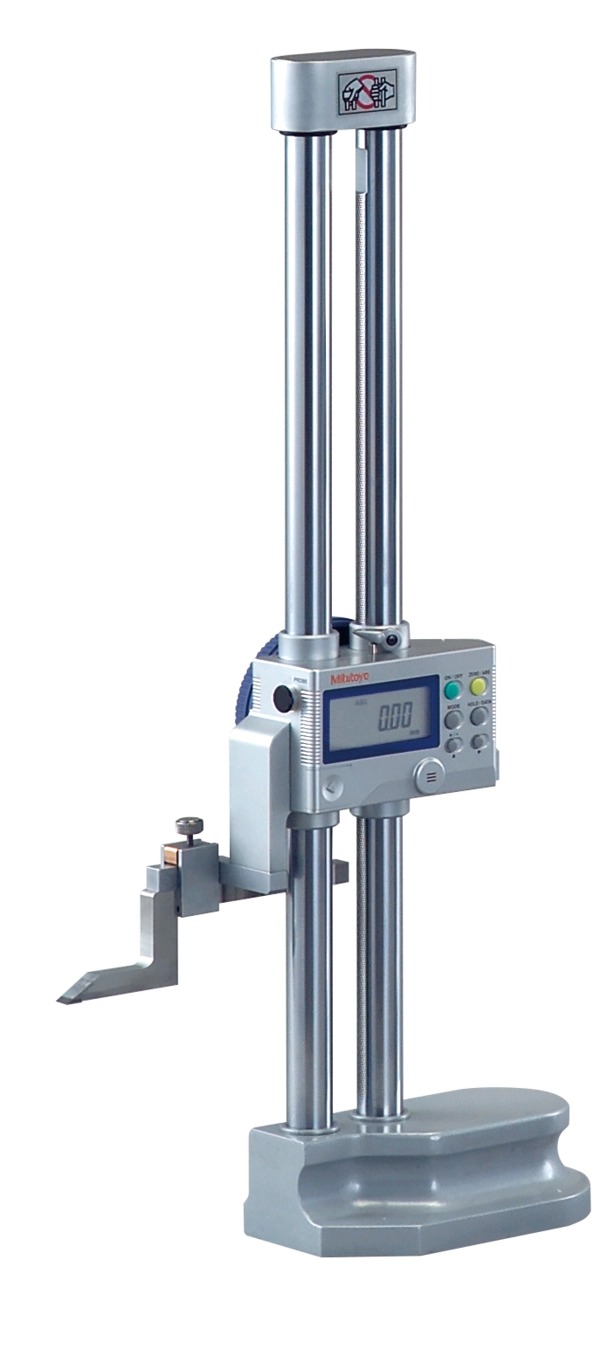

Mitutoyo Digimatic Height Gauge 192-663-10

Description

The Mitutoyo 192-663-10 Digimatic Height Gage – Multi-Function Type has the following specifications:

Range: 0-300mm
Resolution: .005mm or .01mm (Switchable)
Accuracy: +/- .02mm
Mass: 5.7kg
Features:

Available in Metric and Inch/Metric models
Metric models are available in three measurement ranges
Inch/Metric models are available in four measurement ranges
An optional bi-directional touch signal probe is available for to quick and accurate measurement of steps, and inside and outside widths
Resolution is switchable

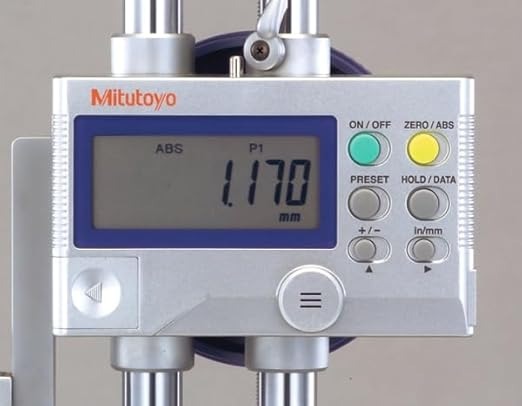

Display features large LCD characters (11mm in height) for easier measurement reading and to reduce eye strain
Large function buttons on display are positioned for easy operation
Inclined slider handle improves slider ergonomics
Rigid construction ensures repeatable measurements
Base is shaped to provide a secure grip
Coarse/fine feeding switch for fast adjustments and precise measurements
Functions include Zero setting, ABD/INC switching, 2 Presets, Probe tip diameter compensation, -/+ switching, Power On/Off, Data hold, Data output, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
The Mitutoyo 192-663-10 Digimatic Multi-Function Height Gage offers the use of an optional signal probe to achieve highly accurate height and external dimensions with improved ease of operation and enhanced functionality. The highly versatile Mitutoyo multi-function digital height gage provides precise height measurements combined with an optional bi-direction touch probe signal to measure step, inside width and outside width. The included carbide-tipped long scriber is extremely durable and provides highly accurate marks on your workpiece. Measurements are shown on an easy-to-read LCD display.
