Mitutoyo DIGIMATIC I/S MIC HEAD 337-102

Product Code: 337-102

$1,284.65$1,167.86 Ex. GST

Product Code: 337-102 SKU 337-102 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

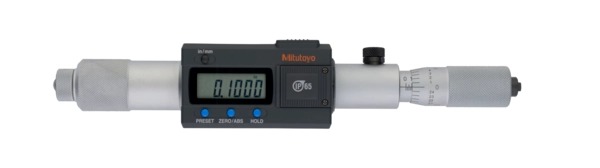

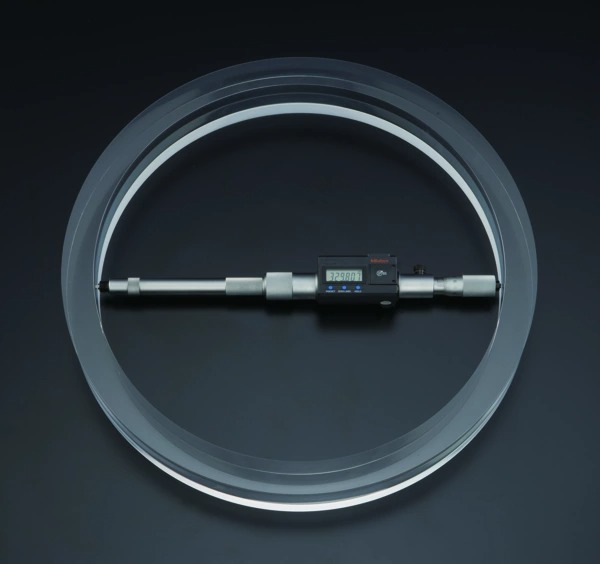

This is an extension rod type inside micrometer that offers you the following benefits:
Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces.
Digimatic type, with data output.
It has excellent resistance against water and dust (IP65 protection level) enabling you to use it in machining situations that include splashing coolant fluid.

Additional information

Weight 0.4450 kg
barcode
Additional Information

Digital/Analog: Digital
Inch-Metric: Inch/Metric
Range: 8 – 9 "
Measuring span: 1 inch
Digital step: 0.001 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Display: LCD, character height 7.5 mm
Measuring spindle: Spindle pitch 0.5 mm
Measuring face: Carbide
Extension: ø12.5 mm
Extension rods: –
Power supply: 1 battery SR-44
DATA/HOLD: Yes
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Low voltage alarm: Yes
Function lock: Yes
2 x PRESET: Yes
Delivered: Including box, spanner (301336/300611), screwdriver (05CAA952), 1 SR44 battery
Spindle feed error: 0.00015 inch
Data output: Yes
Mass: 445 g
