Mitutoyo DIGIMATIC INDICATOR 0-1″ IN/MM 293-330-30

Product Code: 293-330-30

$400.53$364.12 Ex. GST

Product Code: 293-330-30 SKU 293-330-30 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Mitutoyo 293-330-30 Offers
Features

Coolant Proof
Twice as Long Battery Life as before and Drastic Improvement in Measurement Efficiency
IP65 protection level, enabling use in environments exposed to cutting oil, etc (Anti-corrosion treatment is required after use)
Measurement data output function is available with a water-resistant connection cable
Auto power ON/OFF function
LCD Display
Carbide Tipped Measuring Faces

Additional information

Weight 0.2700 kg
Dimensions Length 20.32cm x Width 11.43cm x Depth 5.08cm
barcode
Additional Information

Digital/Analog: Digital

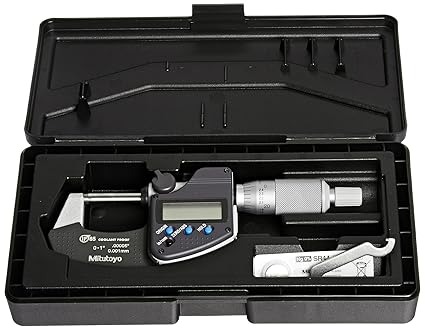

Delivered: Including box, spanner, SR44 battery, certificate of inspection
Inch-Metric: Inch/Metric
Range: 0 – 1 "
Digital step: 0.00005"/0.001 mm
Max. Permissible Error J MPE: ±0.00005"
Flatness: 0.000012"
Parallelism: 0.00004"
Data output: Yes
Display: LCD, character height 7.5 mm
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm

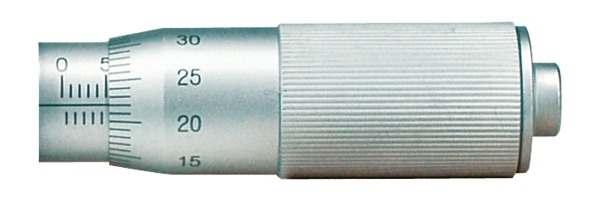

Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 5 – 10 N
Power supply: 1 battery SR-44
Battery life: Approx. 2.4 years for models ≤4", 1.2 years for >4"
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Low voltage alarm: Yes
Function lock: Yes
HOLD: Yes
2 x PRESET (over 100 mm): Yes
Mass: 270 g

Brand

Mitutoyo
