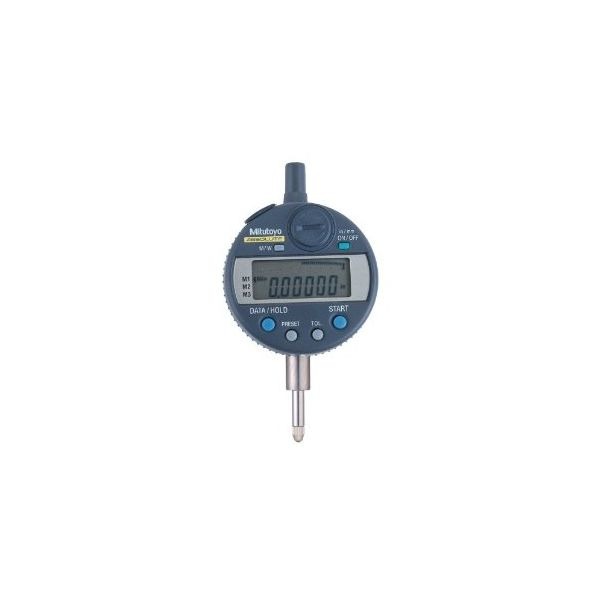

Mitutoyo Digimatic Indicator 543-265B

Digital/Analog: Digital
Inch-Metric: Inch/Metric
Delivered: SR44 Batteries
Range: 0.5"/12.7 mm
Digital Step: .001 mm/.00005"
Max. Permissible Error E MPE (Total Range): ±0.0001"/0.003 mm
H MPE (Hysteresis): 0.0001"/0.002 mm
R MPE (Repeatability): 0.0001"/0.002 mm
Measuring Force MPL: ≤1.5 N
Protection: IP42
Mass: 170 g
Type: EN ISO Standard
Display: LCD, character height 8 mm, 330° rotatable
Max. Response Speed: Unlimited
Measurement Frequency (MAX/MIN/RANGE): Standard mode: 10 times/s, fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement)
Alarm: Low voltage, ABS composition error, overflow error, setting error
Stem Ø: 8 mm
Contact Point: Carbide ball, thread: M2.5 x 0.45
Power Supply: 1 battery CR2032
Battery Life: Standard mode: approx. 1 year, fast mode: approx. 4.5 months
DATA/HOLD: Yes
PRESET 3x: Yes
MIN Value Hold: Yes
Digimatic Data Output: Yes
ON/OFF: Yes
Analog Bar Resolution Switchable: Yes
Function Lock: Yes
GO/±NG Judgement: Yes
Fast Measurement Mode: Yes
Counting Direction Switchable: Yes
Inch/Metric Switchable: Yes
Digital Scale: Electrostatic capacitance type absolute linear encoder
